GREENPIPE Srl was established in 1997 on the basis of the business experience and skills acquired by the Ponti brothers in the field of drainage pipes and systems.
GREENPIPE Srl is located in Correggio, in the province of Reggio Emilia, and thanks to its central geographic position, operates throughout Italy.
GREENPIPE Srl has an extensive distribution network which avails itself of a fast and efficient logistics service as to be able to easily reach all the Italian regions, islands included; this means being able to supply a tight network of partners throughout the country: retailers and major building firms.
Ever since it was first established, the primary aim of GREENPIPE Srl has been to offer the Italian market top-quality products for the flow of drinking water, irrigation water and wastewater. Starting in 2000, the Company began diversifying its activities in the water treatment field, including, alongside pipes, also drainage channels with gratings.
In just a short time, the company has been able to develop a broad range of products suitable for all types of use, from residential areas right up to more demanding applications inside ports and airports.
GREENPIPE Srl is currently among Italian leaders in the surface water harvesting sector.
GREENPIPE Srl is a benchmark company for Local Authorities, Port and Airport Authorities, Industrial Complexes, Engineering Firms, Building material companies and Retailers involved in drainage, and rainwater treatment and control.
The support services provided to Authorities, designers and companies are entrusted to technical-sales staff with over twenty years of work experience acquired in the specific industry of pipes for aqueducts and sewers, production of concrete articles and the water harvesting and management world.
GREENPIPE Srl's goal is to assert itself, over the years, as a company recognized by its customers and by industry operators as a market reference for the quality of the products it is able to offer, as well as for the performance of its organization and the high operating standards of its staff.
The goal is to foster acquired customer loyalty and extend the market areas where it already operates focusing on constant area expansion including onto export markets and extending its product range.
Upgrading the Quality of products and services is a priority reflected in a strong desire to obtain the most updated certifications and the most high-performing solutions in compliance with applicable standards.
Research and Development of Innovative Technologies are combined to ensure the on-going improvement of environmental solutions, for both the present and the future.
Information, assistance, technical and commercial collaboration, frequent meetings with the most important professionals, such as building distributors, design offices and construction companies. This is all GREENPIPE
Year of establishment:
1997
Number of employees:
FROM 10 TO 19 EMPLOYEES
Annual turnover:
between 5 and 15 million Euro
Reference year of turnover:
2019
Export turnover:
0
Activities:
Manufacture of structural metal products
Manufacture of agricultural and forestry machinery
Manufacture of machinery for mining, quarrying and construction
Civil engineering
- Videos
- Catalogue
The construction of a drainage channel is a long job which gives life to products regarding which Greenpipe knows all the history and individual characteristics.
No documents uploaded
- Contact Information
- Business Proposals
Company:
"GREENPIPE S.R.L."
Address:
VIA MODENA 48/B
City:
CORREGGIO (RE)
Zip Code:
42015
E-commerce:
Social media:
Tag:
No business proposals uploaded
- Map

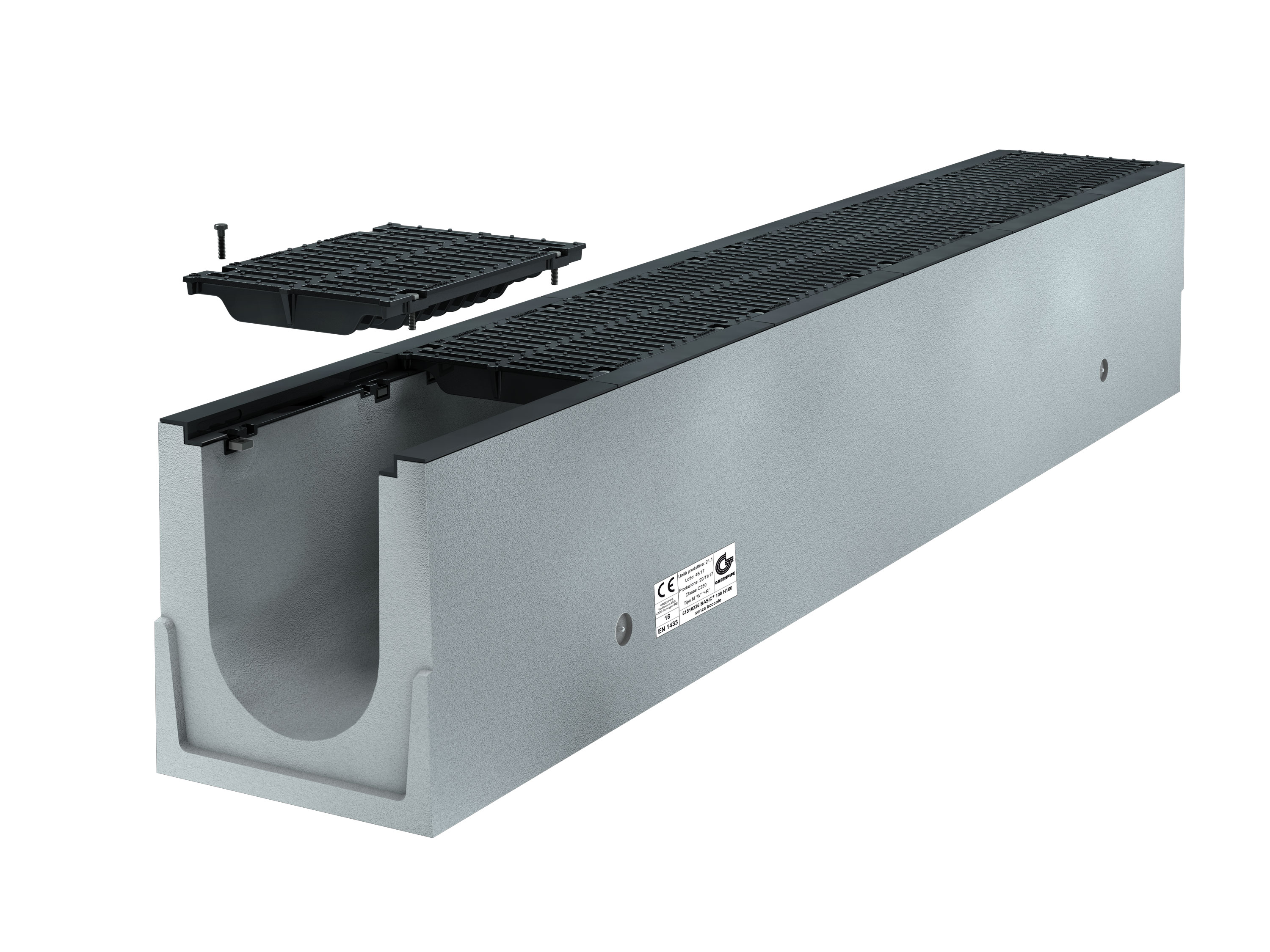

SMART PRO channels with galvanized steel profiles - Type M till E600 class
Smart Pro range channels have 30 mm wall thickness and are provided with galvanised steel edge reinforcement profiles which are perfectly anchored to the main concrete body, preventing any detachment.
Smart Pro profiles are made of materials resistant to corrosion caused by contact with the surrounding environment, giving the product compactness and protection against wear caused by traffic.
The Smart Pro range supports, according to Standard EN 1433, 4 different load classes: B125, C250, D400 and E600. The series of gratings combinable with the channels is wide and available in different versions: anti-heel mesh grating in galvanised steel (B125), ductile iron slotted grating with width of less than 20 cm, legally suitable for transit of people with limited mobility (C250, D400 and E600) and ductile iron mesh gratings “Urbe” (D400).
All channels have a male-female coupling system to provide improved stability during installation and a dedicated groove for perfect joint sealing. Smart Pro channels are provided with assembled gratings, fixed with M10 self-locking screws.
In addition to the Smart Pro range, also available are channels with length of 0.5 m, lower drain outlet, sump units with plastic slit buckets and front/end cap in galvanised steel.
The Smart Pro range is certified according to European standard EN 1433 and bears the mandatory CE marking.
Channel’s dimensions
Nominal width 100 – heights 90, 185
Nominal width 150 – heights 95, 210
Nominal width 200 – heights100, 150, 275
Nominal width 300 – heights 150, 335
Nominal width 350 – height 440
Grating’s type
Galvanised steel anti-heel mesh 30x10 grating load class B125
Ductile iron anti-heel slotted grating load class C250, D400 and E600
Ductile iron anti–heel mesh grating “Urbe” load class D400

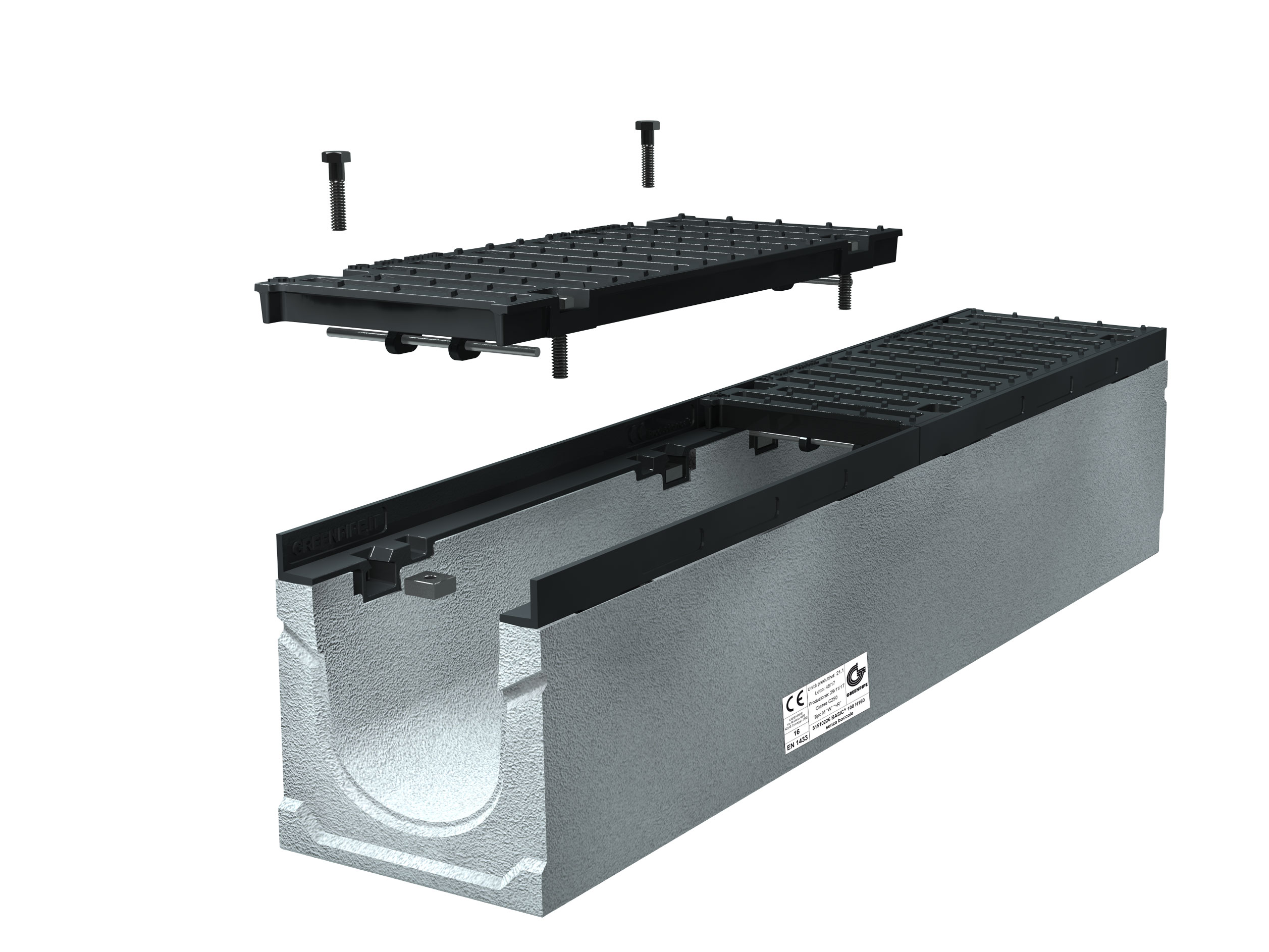

SMART PRO G channels with ductile iron profiles - Type M till E600 class
The new Smart Pro G drainage channels, with wall thickness of 30mm, are provided with cast iron edge reinforcement profiles perfectly achored to the main concrete body, preventing any detachment.
Resistant to corrosion and wear, the reinforcement profiles allow two different fixing system for gratings: the rapid pressure system FAST-LOCK or with a system of M10 nuts and bolts (unscrewing bolt).
Smart Pro G gratings, realized in ductile cast iron, are available in load class D400 and E600: the former are designed for both fastenings, while the latter can be fixed only with the sysyem of nuts and bolts. Two protrusions on the sides of the grating can be placed in proper seatings made expressly in the profiles to prevent unwanted longitudinal movements.
All channels have a male-female coupling system to provide improved stability during installation and a dedicated groove for perfect joint sealing.
In addition to the Smart Pro G range, also available are channels with lenght of 0,5 m, lower drain outlet, sump units with plastic slit buckets and front/end cap in galvanised steel.
Smart Pro G channels are provided with assembled gratings, facilitating handling and reducing costs during installation.
Smart Pro G range is certified according to European standard EN 1433 and bears the mandatory CE marking.
Channel’s dimensions
Nominal width 100 – heights 100, 190
Nominal width 150 – heights 100, 215
Nominal width 200 – heights 100, 280
Nominal width 300 – heights 140, 340
Grating’s types
Ductile iron anti - heel slotted grating load class D400 with fast fixing sysyem or with bolts
Heelguard spheroidal cast iron with mesh class E600 with bolts (clear opening 100 and 150)
Heelguard spheroidal cast iron with slots class E600 with bolts (clear opening 200 and 300)

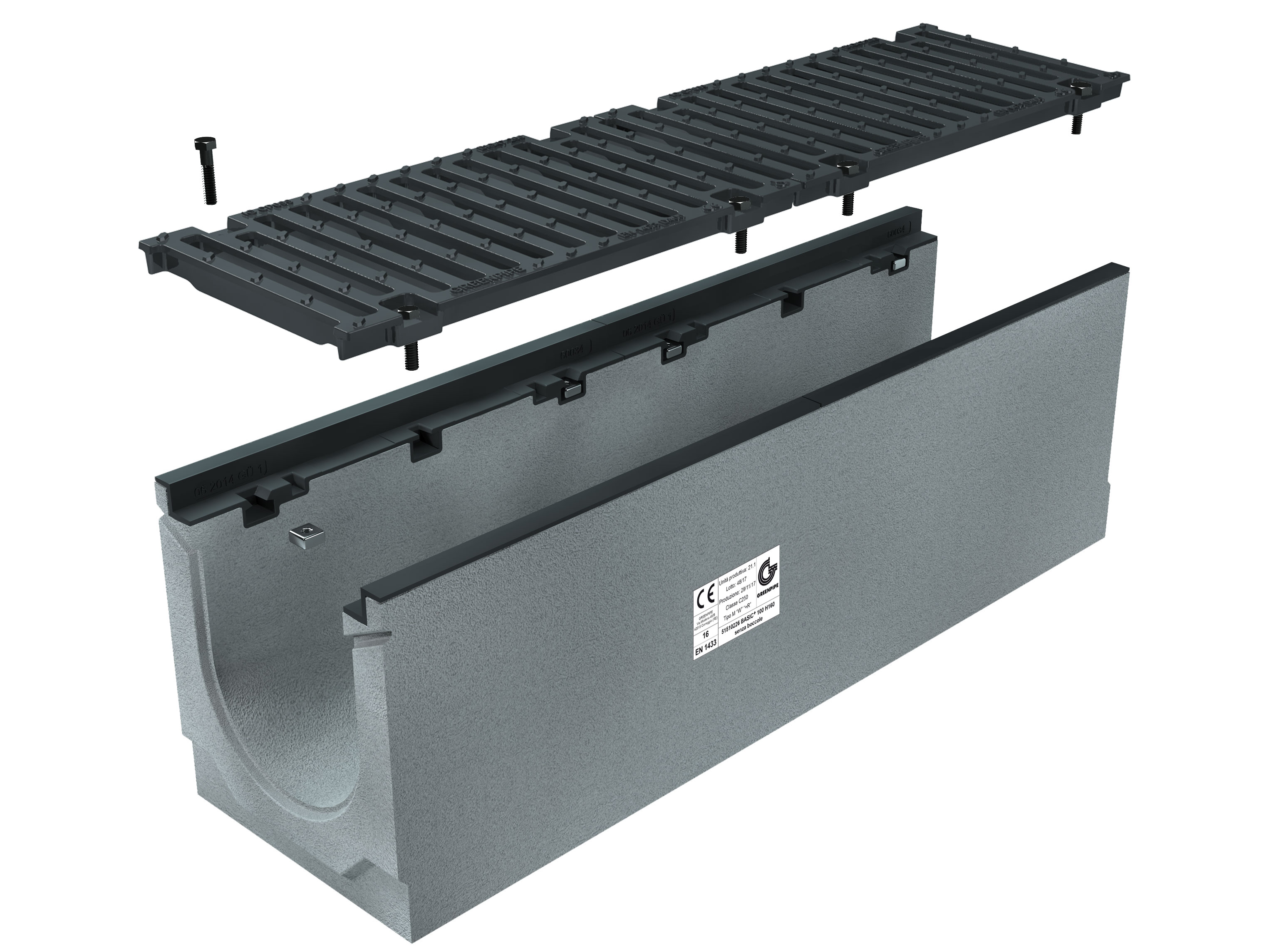

BIG47 channels with ductile iron profiles - Type M till F900 class, Type I/D400 (only for clear opening 100 & 150)
BIG47 range channels have 47 mm wall thickness and are provided with cast iron edge reinforcement profiles. These profiles are perfectly anchored to the main concrete body, preventing any detachment.
BIG47 profiles are made of materials resistant to corrosion caused by contact with the surrounding environment, giving the product compactness and protection against wear caused by traffic.
All channels have a male-female coupling system to provide improved stability during installation and a dedicated groove for perfect joint sealing.
The BIG47 range supports, according to Standard EN1433, 3 different load classes: D400, E600 and F900. The series of gratings combinable with the channels are made in ductile iron with slots (width less than 20 cm), legally suitable for the transit of people with limited mobility.
BIG47 channels are provided with assembled gratings, fixed with a system of M10 nuts and bolts (unscrewing bolt).
In addition to the BIG47 range, also available are lower drain outlets, sump units with plastic slit buckets and front/end cap in galvanised steel.
The BIG47 range is certified according to European standard EN 1433 and bears the mandatory CE marking.
Channel’s dimensions
Nominal width 100 – heights 210, 285
Nominal width 150 – heights 240, 290
Nominal width 200 – heights 320, 395
Nominal width 300 – heights 395, 615
Nominal width 400 – height 495
Nominal width 500 – height 625
*on demand other heights are available
Grating’s types
Ductile iron load class D400, E600 and F900
BIG I nS channels with ductile iron profiles "Z-shape" - Type I till F900 class
BIG I nS channels, with a wall thickness of 75mm, are provided with reinforcement profiles and protection against wear due to traffic, perfectly anchored to the concrete body in order to prevent their detachment during operation.
The profiles, made of cast iron and therefore resistant to corrosion caused by contact with the surrounding environment, convey extra compactness to the product and greater stability to the gratings.
The fact that they are Z-shaped ensures they fully cover and wrap around the channel and give the entire assembly a very long life span while at the same time making installation easier and safer.
The channels are fitted with male-female joints for better stability during installation and feature extremely smooth internal walls for better water flow. The porosity of the concrete is extremely reduced thanks to its high quality, making it highly resistant to water penetration.
The range conforms to European Standard EN1433 up to class F900/Type I and bears the mandatoryy CE mark.
BIG I nS channels, supplied with gratings already-mounted and fastened with M10 (on request M12) “screw + nut”, security system, are ideal for use in areas with all types of traffic, up to the heaviest and most intense, such as installations along roads and motorways, road crossings, underpasses, port quays or logistics hubs, airports.
BIG I nS channels are available in various internal dimensions, i.e. with clear openings from 200 mm up to 500 mm, for each of which two different heights are available.
The largest size, 500x600 mm, ensures a large storage capacity, useful where it is not possible to manage the flow of the collected water through a large number of drains.
The standard length of the products is 3 metres or 1 metre and all of them feature special lifting nails for handling during loading/unloading and installation.
Matching gratings are available in classes from D400 to F900, in the spheroidal cast iron slotted version. Products with pre-installed drains can be made to order.
Channel’s dimensions
Nominal width 200 – heights 315 - 420
Nominal width 300 – heights 415 - 520
Nominal width 400 – heights 525 - 630
Nominal width 500 – heights 645 – 750
Grating’s types
Ductile iron with slots load class D400, E600 and F900.
