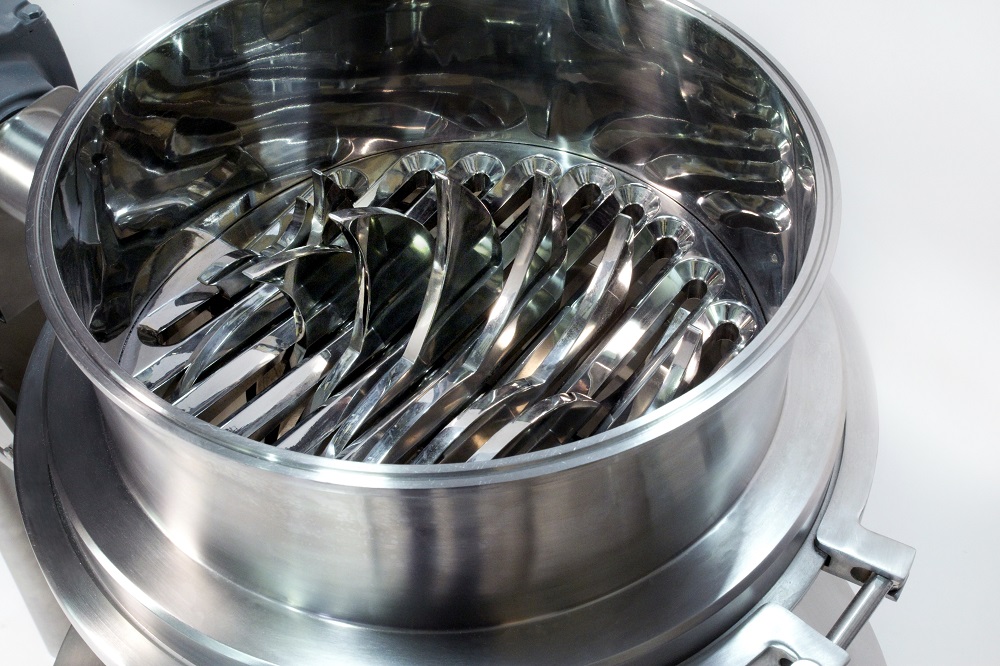

Rotocrusher is a sanitary stainless-steel lump breaker, a device for crushing lumps (clotted powder) that may be present in bulk products. It is powered by a direct high torque drive system (electric motor) that meets rigorous safety and hygiene standards while seeking the ideal fragmentation.
Thanks to its modular, compact construction, the Rotocrusher can also be employed as a pre-breaker in conjunction with a sieve, a mill etc.
Manufactured according to cGMP it is easy to clean and it is suitable for CIP and SIP.

Due to Rotocrusher high demand, SteriValves recently decided to optimize its performance by significantly improving some technical aspects:



THE NEW ROTOCRUSHER MAIN CHARACTERISTICS AND ADVANTAGES ARE:

• Composed by a unique half-body and a few components: favoring disassembly and cleaning and reducing product accumulation areas.

• Reduced total height: allowing it to be placed or integrated in reduce spaces.

• The lump-crushing rotor has been designed to run at higher speed: bearings have been added in the construction scheme to support the weight and to allow rotor and shaft to run faster without increasing bushings and containment seals workload (essential in these devices).

• Blades are aligned: for more efficient crushing work.

• New containment and cleaning system: it is possible to have a working cycle in pressure and in depression. Ideal for SIP and CIP

• it is possible to quickly and easy separate the gearmotor from the Rotocrusher thanks to a slide: easy and safe maintenance and cleaning



Field of applications:

Dryer: to reduce the size of the lumps that keep high humidity content.
Granulation process: to reduce deliberately compacted material in order to obtain an homogeneous drying.
Pneumatic transfer: to reduce natural agglomerations that may block the flow.
Thermosensitive product
Limited space available.

ROTODOSER is the ideal solution whenever accuracy is required.

Dosing powder and bulk product presents significant challenges in order to fill and reach the necessary batch, accurately and safely.
Powder is not simply powder, it has various properties; powder can behave differently according to the environmental conditions, such as in the event of temperature fluctuations.
Dosing bulk products can cause problems to many pharmaceutical, food and chemical factories: interruption of filling, non-containment of product particles, damaged products.

SteriValves, always committed to solving process critical issues, designed and developed the optimal solution for accurate bulk product dosing: The ROTODOSER valve.

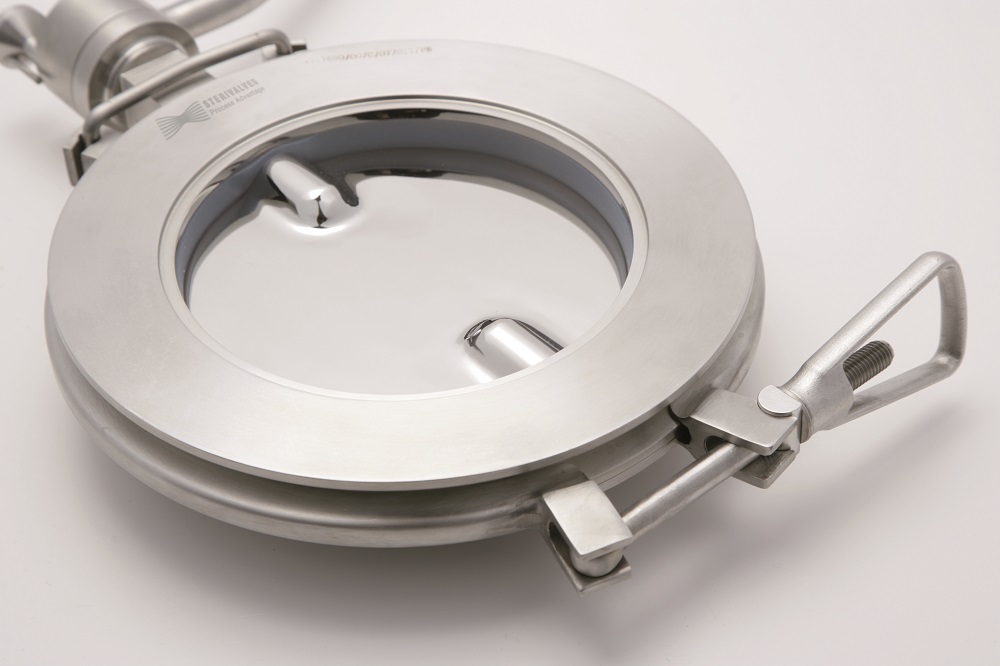

It consists of two coaxial rotors of different volume individually actuated, which determine product flow and dosing in a unique solution.

It widely stands out among other solutions on the market due to its main salient peculiarities:

*it is a double rotary valve, meaning that it has a highly performing rotor inside the main one.
Its double rotor design put together the discharge capacity with the accurate dosing in a single solution:
-The main rotor ensures continuous product flow while the secondary rotor ensures accurate dosing.
-The main rotor discharges large amount of product, the secondary rotor makes the precise dosage.
Benefits: reduce time and costs

*Secondary rotor can be customized in order to achieve the required dosage, meeting technical specifications in terms of accuracy.
Benefits: precise batches (no waste and higher quality)

Other supreme advantages that Rotodoser offers are:

*Light weight: Designed for ease of assembly / disassembly and maintenance operations that can be done by a single operator
Benefits: reduce time and costs

* Funtional design:
o Smooth surfaces that allows it to be easy to clean
o Compact: making it easy to be installed in the plant or system
o Ergonomic design: reducing time, costs and risk of contamination
Benefits: reducing time, costs and risk of contamination


* Quick connections: it can be mounted and dismounted with a clamp connection, facilitating maintenance.
Benefits: reducing time and costs

* adaptable to standard connections present on the machinery or plant
Benefits: reducing installation costs

*Includes complete technical documentation (presented in 6 languages)
*Upon customer request, it can be ATEX rated

ROTOVALVE LIGHT is a “special” butterfly valve with a 6 blades rotor, controlled by an actuator. Its rotor makes 180° movements back and forth, commanded by a 0°-180° pneumatic actuator.
Its main advantage over the well-known butterfly valve is that it not only intercepts the flow, but it also offers the possibility to control it and feed a process automatically and continuously.
It is the perfect solution if you need to feed hoppers, homogenizers or process and packaging machines.


Main Features

Materials
– Body and rotor: Stainless steel EN 1.4404 (AISI 316L)
– Seals: Translucent Silicone, EPDM, FKM (Viton®), PTFE

Motion Drive:
– Pneumatic actuator
Finish
Ra 0.5 μm internal, 1.2 μm external

Declarations and Certifications
– FDA Certification (CFR § 177.2600)
– Material Certificate 3.1 as per EN10204
– ATEX

Sizes
DN 80, DN 100, DN 150, DN 200, DN 250, DN 300, DN 350, DN 400

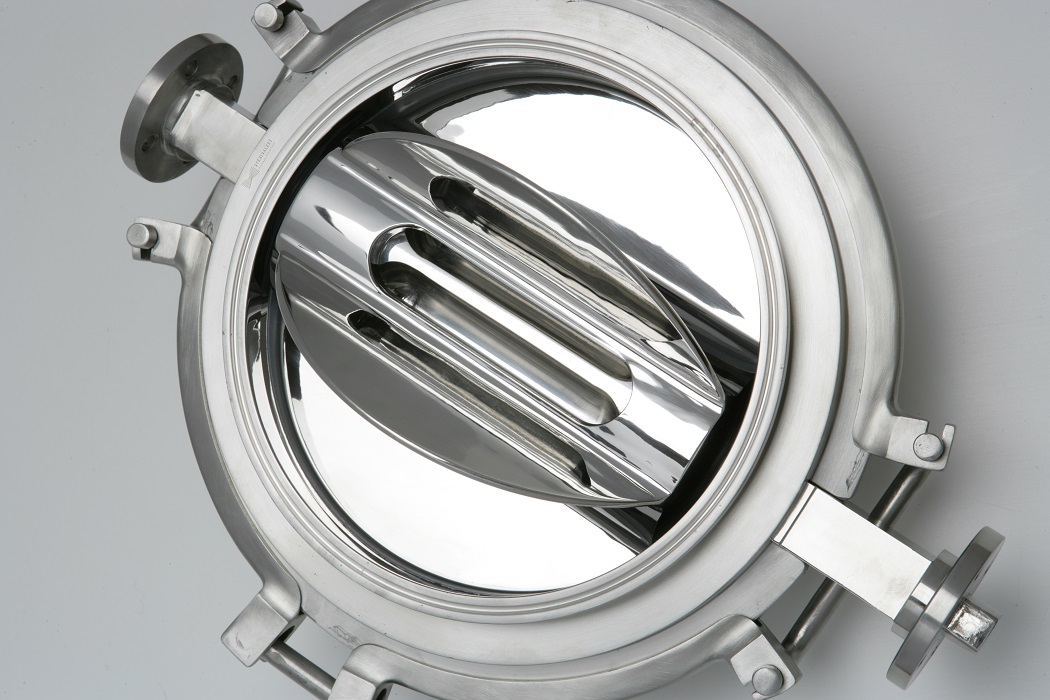

ROTOVALVE PLUS is the valve SteriValves designed to aid the feeding and volumetric dosing of bulk solid product, it is a heavy-duty rotary valve, with an 8 blades rotor, commanded by a motor.
Apart from its mirror-polished internal surfaces in contact with the product (Ra <0.5 µm), the Rotovalve Plus hygienic design avoids the presence of “dead corners” or obstruction points where the product can accumulate and cannot be eliminated using the washing liquid.
Its seals are also designed with the same logic; besides, an internal flushing system ensures the removal of elastomer particles that may appear with the valve normal use.
In many applications — such as food, pharmaceutical, chemical and industrial — fast and effective cleaning is crucial and important.

SteriValves Rotovalve Plus is CIP and SIP. It can be easily cleaned, improving safety for workers, reducing downtime and production loss.

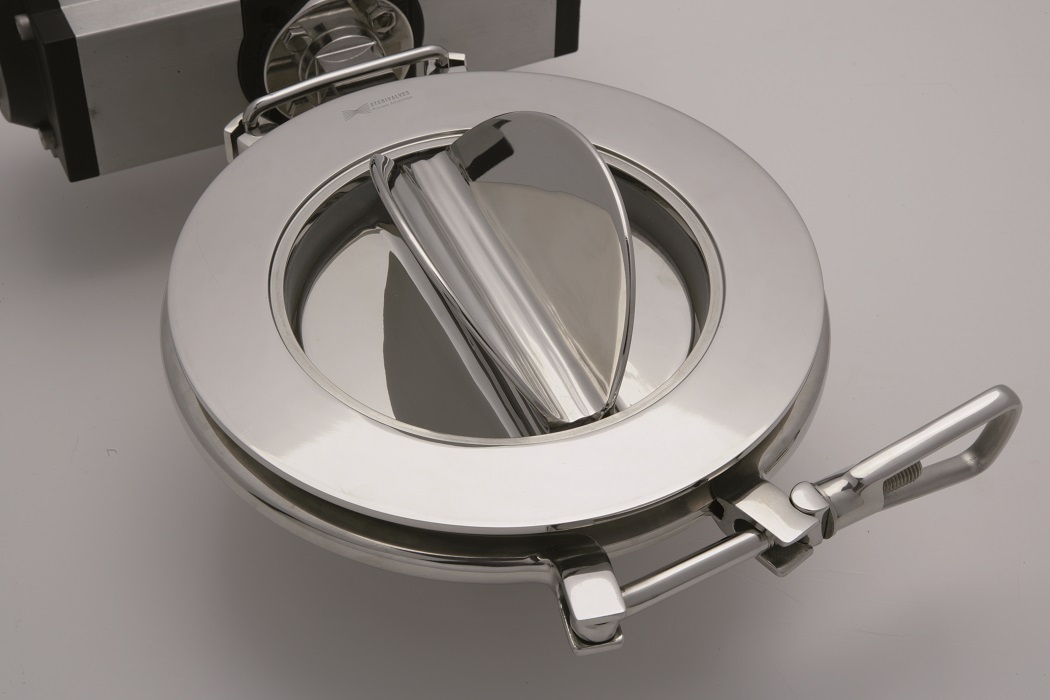

Our sanitary butterfly valve STERIVALVE is designed to intercept bulk solid product flow within the process. The compact design, free of recesses and interstices allows easy cleaning and handling. The torque value is very low so an operator can easily open it by using a lever.
It is used to intercept flow on containers, hoppers and pipes.

MAIN CHARACTERISTICS:

Materials
– Body and Butterfly: Stainless steel EN 1.4404 (AISI 316L)
– Seals: Translucent Silicone, EPDM, FKM (Viton®), PTFE

Motion Drive:
– Handle
– Pneumatic actuator
Finish
Ra 0.5 μm internal, 1.2 μm external

Declarations and Certifications
– FDA Certification (CFR § 177.2600),
– Material Certificate 3.1 as per EN10204,
– ATEX

Sizes
DN 80, DN 100, DN 150, DN 200, DN 250, DN 300, DN 350, DN 400
