SINAPSI - Connecting your energies !
IoT solutions for the energy transition.
SINAPSI is an Italian company that develops, designs, and produces energy monitoring and control solutions for the electrical sector, as well as for heat metering and monitoring, renewable energy source monitoring, and building automation control.
Founded in 2004, the company has consolidated its position in the European market over the years as an OEM manufacturer for prestigious international brands, thanks to a strong focus on research and development activities, in which it invests significant resources to create high-value products and solutions.
From the very beginning of its operations, SINAPSI has firmly believed in and adopted the KNX standard as its main reference protocol for the development of its building automation products.
Following the evolution of market business models, which are becoming increasingly data-driven, SINAPSI has decisively entered the services market in recent years by connecting its solutions.
To achieve this, it has designed and developed its own cloud platform, SGH (Sinapsi Global Hub), the MySINAPSI environment, and the SINAPSI.store e-commerce platform.
To enhance its R&D activities, in 2020 SINAPSI was admitted by the Autonomous Province of Trento into the Mechatronics Hub of Rovereto (TN), where it now has an operational office with a team dedicated to new product development.
Year of establishment:
2004
Number of employees:
FROM 10 TO 19 EMPLOYEES
Annual turnover:
between 2.5 and 5 million Euro
Reference year of turnover:
2024
Export turnover:
From 250.000 to 750.000 Euro
Activities:
Manufacture of other communication equipment
Manufacture of other instruments and appliances for measuring and testing nec
Manufacture of electric motors, generators, transformers and electricity distribution and control apparatus
Other information technology and computer service activities nec
- Videos
- Catalogue
Company profile | SINAPSI SRL
MCE 2024 - Celebrating 20 years of SINAPSI with a wonderful After Hour Party20
SINAPSI SRL | Company profile
SMART METERING | EQUOBOX
MONITORING | ESOLAR
- Contact Information
- Business Proposals
Company:
SINAPSI S.R.L.
Web site:
Address:
VIA DELLE QUERCE 11/13
City:
BASTIA UMBRA (PG)
Zip Code:
06083
E-commerce:
Social media:
Tag:
No business proposals uploaded
- Map

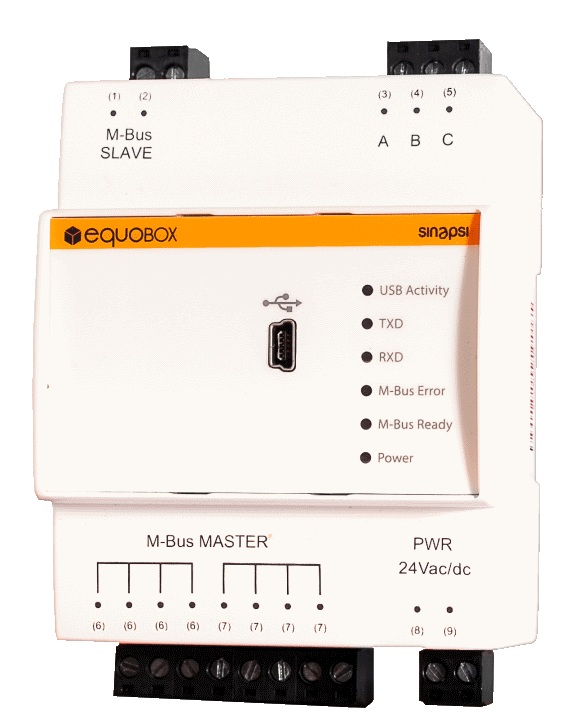

LEVEL CONVERTER
M-Bus adapter/repeater of EQUOBOX system. M-Bus Level Converter allows interfacing to a network of devices compliant with the M-Bus standard (EN13757 -2 Physical Layer) up to a maximum of 60 slaves.
Documents

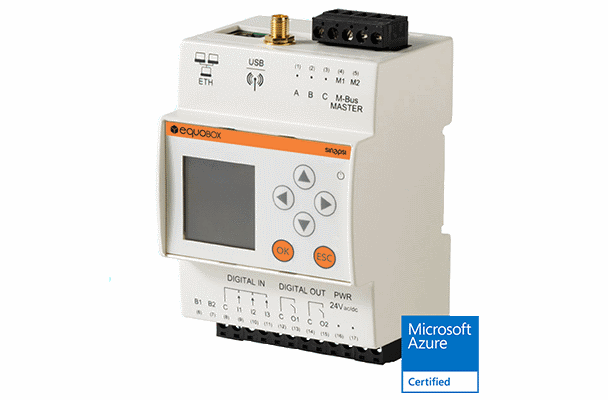

SIN.EQRTUEVO1T
Web server with integrated datalogger for data collection via M-Bus / wireless M-Bus.RTUIt collects information from devices that use wireless standard M-Bus protocol such as meters, heat cost allocators, digital inputs/outputs and analog inputs/outputs, probes, SSL compliant.
Documents
SMART REPEATER SINAPSITECH
Multi-hop receiver for wireless M-Bus 868/169/OMS data collection. It handles up to 500 meters and it is able to cover a distance of 500 mt in open air and 20 meters in building.
Documents

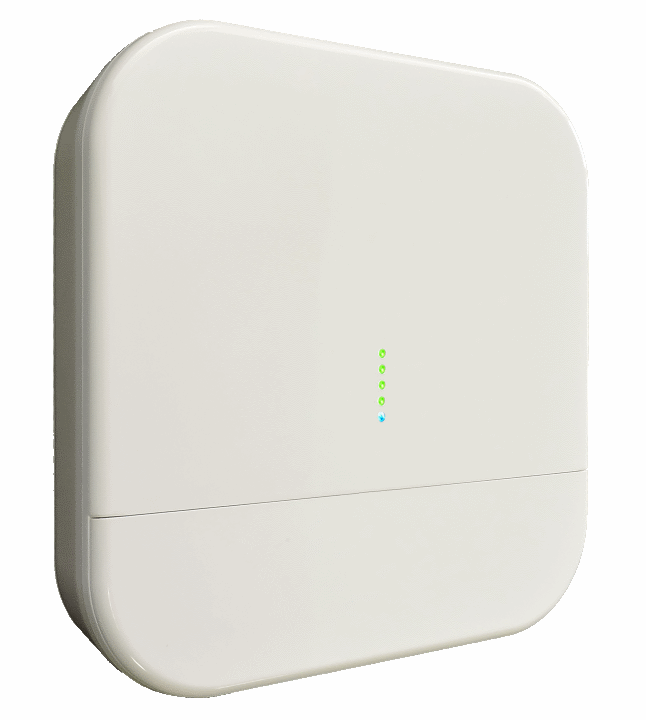

SMART GATEWAY
The SIN.EQRPT868XM is the definitive solution for smart metering application of small properties. SIN.EQRPT868XM data concentrator allows the acquisition of signal from RF devices according to the standard wireless M-Bus 868MHz and OMS. It is able to cover a distance of 250 meters in open air and 25 meters in building. The plastic case, the electrical connections fully retractable, antennas built into the device itself make the device suitable for wall installations in view. The commissioning of the repeater is facilitated by the Sinapsi Global Hub IoT Platform and LEDs. The SIN.EQRPT868XM have integrated GPRS modem and it is supplied with the IoT SIM. It can manage max 500 devices. It supports wireless M-Bus S, T & C modes. The system can be easily managed through the Sinapsi Global Hub IoT Platform. No time-expiring limitation: grid network supply (no need to change batteries). The range covered by the SIN.EQRPT868XM can be extended via standard wireless M-Bus repeaters 868MHz (SIN.EQRPT868X).
Documents

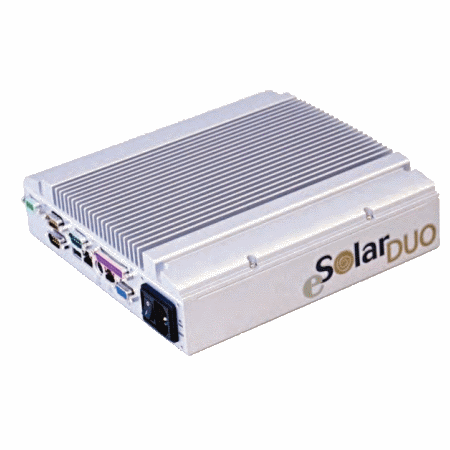

ESOLAR DUO - MONITORING SYSTEM FOR PHOTOVOLTAIC PLANTS
eSolar DUO is a system for monitoring and managing local or remote maintenance of photovoltaic systems. eSolar DUO includes a home automation engine, using the KNX communication protocol, the only global standard open for home and building automation in accordance with CEI EN 50090 and ISO / IEC 1454 standards. eSolar DUO is able to communicate with most of photovoltaic inverters, energy meters, string controllers in the market through RS232 / RS485, ETHERNET and S0 pulse output. It can also manage inverter groups so as to allow a detailed examination on each part of the plant, whether different photovoltaic technologies have been used. eSolar DUO can calculate the energy production, performance ratio and economical data of every plant’s section (in agree with EN61724). eSolar collects, stores and allows the visualization of charts or log files graphics every 15 minutes, every day, every month and every year for 10 years. eSolar DUO support KNX communication, in order to integrates different tipologies of analogical sensors and to make actuations throught the KNX bus.
