We are a dynamic and creative company founded in 2012, specialising in spectrophotometry and applied electronics. We use our theoretical and practical knowledge and methodologies to design and build electronic systems and measuring instruments.
POLISPEC is a line of multifunction spectrophotometers, with industrial design, compact and innovative, designed for a variety of uses as portable, laboratory instruments and for simple integration into industrial processes. Their operation is based on the interaction of a light source with the molecules and with the chemical bonds that characterize the matrix to be analyzed, thus performing both quantitative and qualitative measurements.
Year of establishment:
2014
Number of employees:
FROM 3 TO 9 EMPLOYEES
Annual turnover:
between 0.5 and 2.5 million Euro
Reference year of turnover:
2020
Export turnover:
0
Activities:
Manufacture of computer, electronic and optical products
Repair, maintenance and installation of machinery and equipment
Installation of measurement and testing equipment
Computer programming activities
Scientific research and development
Other professional, scientific and technical activities
- Videos
- Catalogue
No videos uploaded
ITPHOTONICS Company Profile
Polispec - Portable and OnLIne instrument for SPECtroscopy
- Contact Information
- Business Proposals
Company:
ITPHOTONICS S.R.L.
Telephone:
+3904451925221
Address:
VIA DELL'ARTIGIANATO 62
City:
FARA VICENTINO BREGANZE (VI)
Zip Code:
36042
Social media:
Tag:
No business proposals uploaded
- Map

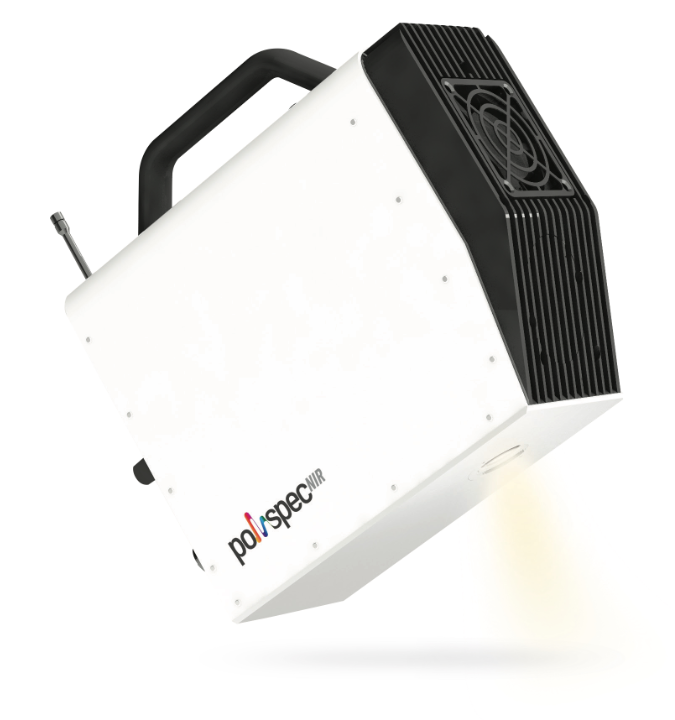

Polispec NIR
Polispec NIR is the instrument of excellence of the range, it is a robust and compact spectrophotometer, made both for portable use and for in-process installation. It is available in the near infra-red spectral ranges, between 900 and 1700 nm. It has been designed considering various technological approaches that make it highly performing in terms of sensitivity, operational dynamics and signal cleanliness.
These qualities make Polispec NIR suitable for analysing very different matrices, from the most reflective to the most absorbent, without the need for different versions of the instrument for each application area. The casing is made entirely of anodised aluminium, while a large
heat sink is located at the front to remove the heat generated by the lighting system and the active cooling system of the sensor. Adaptable to different types of applications (reflection, transmission, contactless…), in its standard configuration in reflectance Polispec
NIR integrates a diffuse/0° optics and a system of automatic internal references which, as well as for the acquisition of the measurement, can be controlled by two buttons. The area framed by the collection optics is extremely large and particularly suitable for the analysis of whole products and for product flows in motion.
For in-process installation, the tool/machine coupling can be created in different shapes and materials in order to be adapted to the most particular needs (for example in the food and industrial sectors).
The software interface is extremely simple, intuitive and compatible with different calibration suites for users who wish to develop their own chemometric models. We have created the entire software infrastructure to be easy to use both independently and for easy integration, for example, with plant PLC systems or machine CAN protocols. The instrument itself can be configured for different communication protocols in order to make its use even easier.
Documents

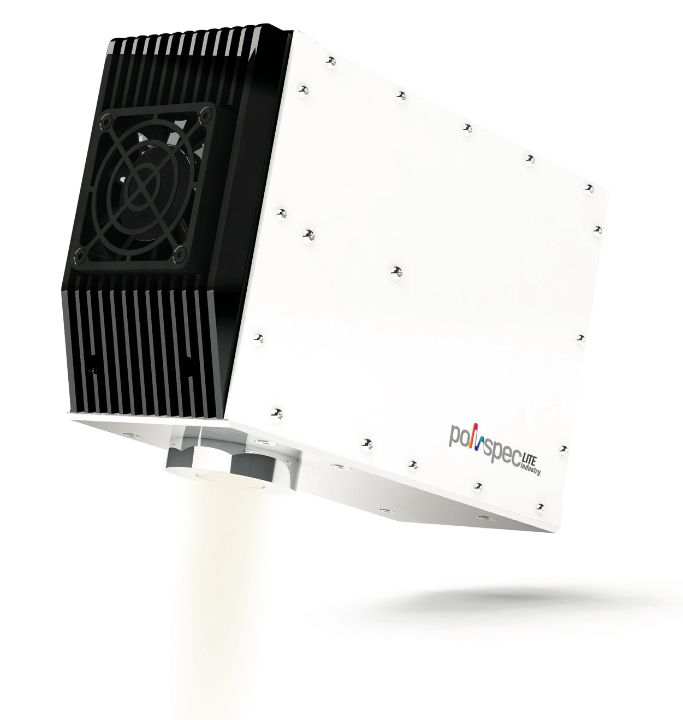

Polispec Lite
Polispec LITE is a reflection spectrophotometer (also configurable for transmission or contactless applications), with extremely compact dimensions, equipped with an interior lighting system and automatic references. Available in different spectral configurations between 400 and 1100 nm, i.e. between the end of the visible band and the first part of the near infra-red, Polispec LITE has been designed for both portable use and for in-process installation. Particularly suitable for the analysis of macro-elements, Polispec LITE easily adapts to different working conditions. The casing is made entirely of anodised aluminium, while a large heat sink is located at the front to remove the heat generated by the lighting system. Designed for reflectance analysis, this instrument integrates diffuse/0° acquisition optics and a system of automatic internal references which, when configured for portable mode, can be controlled by two buttons positioned on the body of the instrument itself.
The area framed by the collection optics is extremely large and particularly suitable for the analysis of whole and not very homogeneous products or even product flows in motion. For in-process installation, the tool/machine coupling can be created in different shapes and materials to be able to adapt to the most particular requirements (e.g. in the food and industrial sectors). The software interface is extremely simple, intuitive and compatible with different calibration suites for users who wish to develop their own chemometric models.
We have created the entire software infrastructure to be easy to use both for direct use and for the system used in the back-end and integrated, for example, with plant PLC systems or CAN protocols. Both the hardware and software configurations of the Polispec instrument range can be adapted for compatibility with different protocols and communication interfaces, so that the integration work is minimal for the customer.
Documents

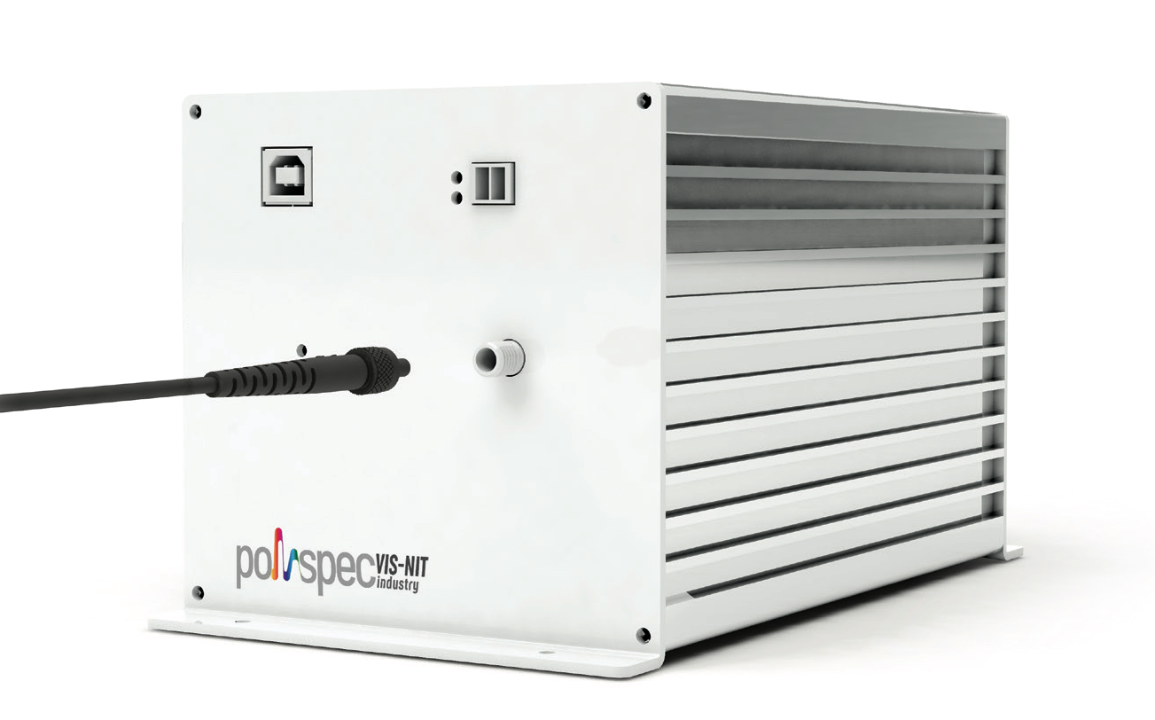

Polispec VIS-NIT
Polispec VIS-NIT is an extremely robust spectrophotometric sensor, designed to be connected via fibre optics to a variety of measurement probes and lighting sources. It is available in the spectral ranges between 340 and 1100 nm. Thanks to its particular compactness, Polispec VIS-NIT can be easily integrated into any point of a production line. This instrument is equipped with two programmable internal signal modulators to make it efficient even in processes in which the work dynamics are very different from each other in order to avoid having to adapt the system with hardware devices. The casing is made of anodised aluminium and is available with different levels of protection from liquids and dusts.
The software interface was developed in the logic of process systems to be easily integrated into the system and with PLC modules. The entire system, consisting of Polispec VIS-NIT and the management software, can therefore be supplied with different protocols and communication interfaces, so that the integration work is minimal for the customer.
Documents
