CaBa Industrie Srl, is an Italian company based in Faenza, that produces a high variety of agricultural machines for orchards and vineyards as well as flexible transmission for industries.
Our Mission is to produce durable machines, which purpose is to provide a high quality and biological agriculture, especially as far as inter-row cultivation, pruning, thinning and spraying is concerned.
CaBa Industrie has been mostly producing agricultural equipment and machines for vineyards and orchards throughout three different and multi-functional brands: LOTTI, VICAR and SPECIALCAVI.
• The brand Lotti represents the best choice to till the soil, remove weeds and pruning the leaf canopy, using a variety of interchangeable tools according to all your needs
• The brand Vicar identifies a revolutionary sprayer system suitable for generating a constant air flow on the leaf canopy, ensuring a considerable drift reduction thanks to its spraying precision
• With SpecialCavi we manufacture several kind of wires applications for industries
Year of establishment:
2003
Number of employees:
FROM 10 TO 19 EMPLOYEES
Annual turnover:
between 0.5 and 2.5 million Euro
Reference year of turnover:
2023
Export turnover:
From 2.5 to 5 million Euro
Activities:
Manufacture of other various fabricated metal products nec
Manufacture of bearings, gears, gearing and driving elements
Manufacture of other agricultural and forestry machinery
Manufacture of other parts and accessories for motor vehicles
- Videos
- Catalogue
CaBa Industrie introduces itself. Here you can see who we are, what we do and how we do it, by continuously exchanging know-hows from brand to brand and from line to line
To avoid the use of chemicals we decided to extend the range of the tools that are interchangeable on the head-device of our machines. In few minutes is now possible to mount on it the new toothed fast disc (DV) that breaks the soil and that, combined with the Kress Star Ø 70 cm, allows a simple and effective soil tilling without the feeler-pin. The particular form of its offshoots makes possible to come really close to the stumps of your orchard or vineyards thanks to the inclination possibility of the machine's head. The ability of the fast disk DV 3.00 to break the soil allows to extend the range of soils where the work of these tools is effective. The iron teeth under the star (ST) finish and define the work.
Here is shown the effectiveness of the New - Qiuck - Wire Chopper (Patented) - look out even the cuts in slow motion. You can find it under the code TRF in the catalog

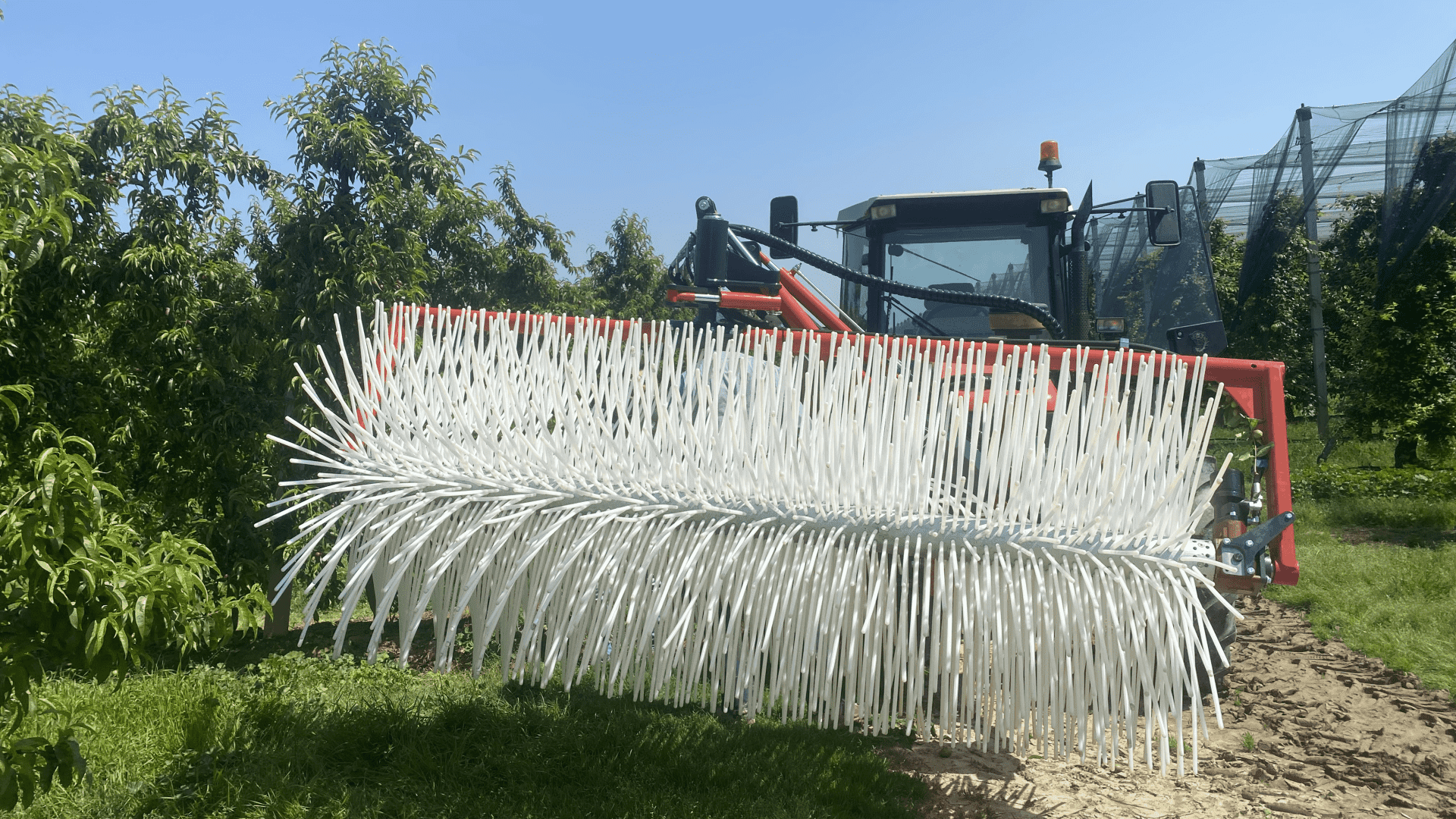

In this vide you can see our innovative fruit thinning machine, mounted on a CT 80 column trimmer. After having been tested on stone fruit trees, it can save up to 70% of the effective costs of manual thinning
Vicar sprayer, air unit 470, with setting-up for GDC-vineyard. It's really easy to describe it: FEEL THE POWER!
LOTTI CATALOGUE - Here you can find the whole range of the products of the brand Lotti. You can have a look at our inter-row cultivators, trimmers, tool carriers and to all the different tools and optionals which can combined to the Lotti machines
VICAR CATALOGUE - Here you can find the whole range of the products of the brand Vicar. Discover our innovative turbine sprayers and their different applications in all the possible situations
CABA COMPANY PROFILE - Here you can have an outlook of our company, its vision and mission as well as all the products' lines
- Contact Information
- Business Proposals
Company:
CABA INDUSTRIE SRL
Telephone:
+39 0546.665108
Web site:
Address:
VIA URBANIA 26
City:
FAENZA (RA)
Zip Code:
48018
Social media:
Tag:
No business proposals uploaded
- Map
IT 15

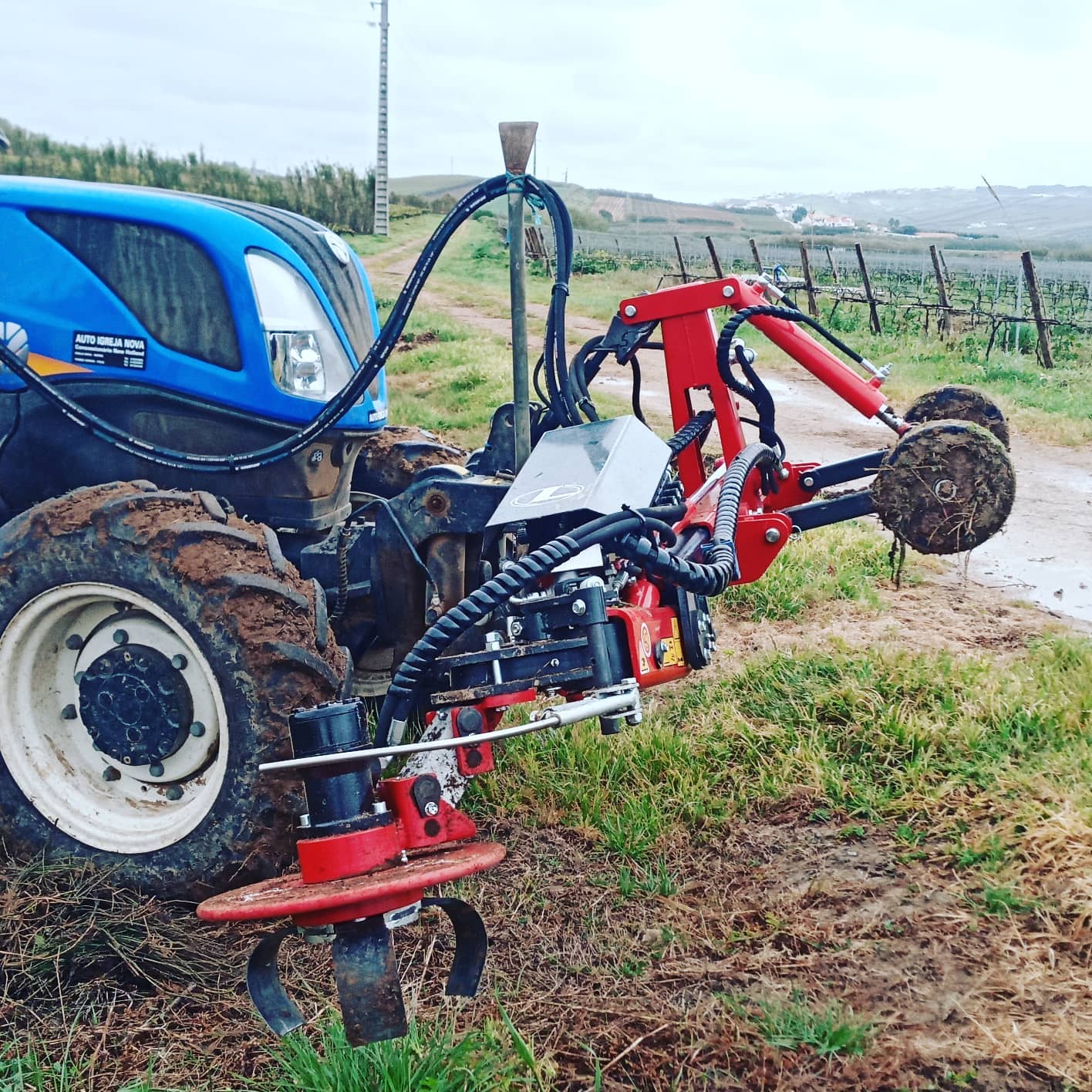

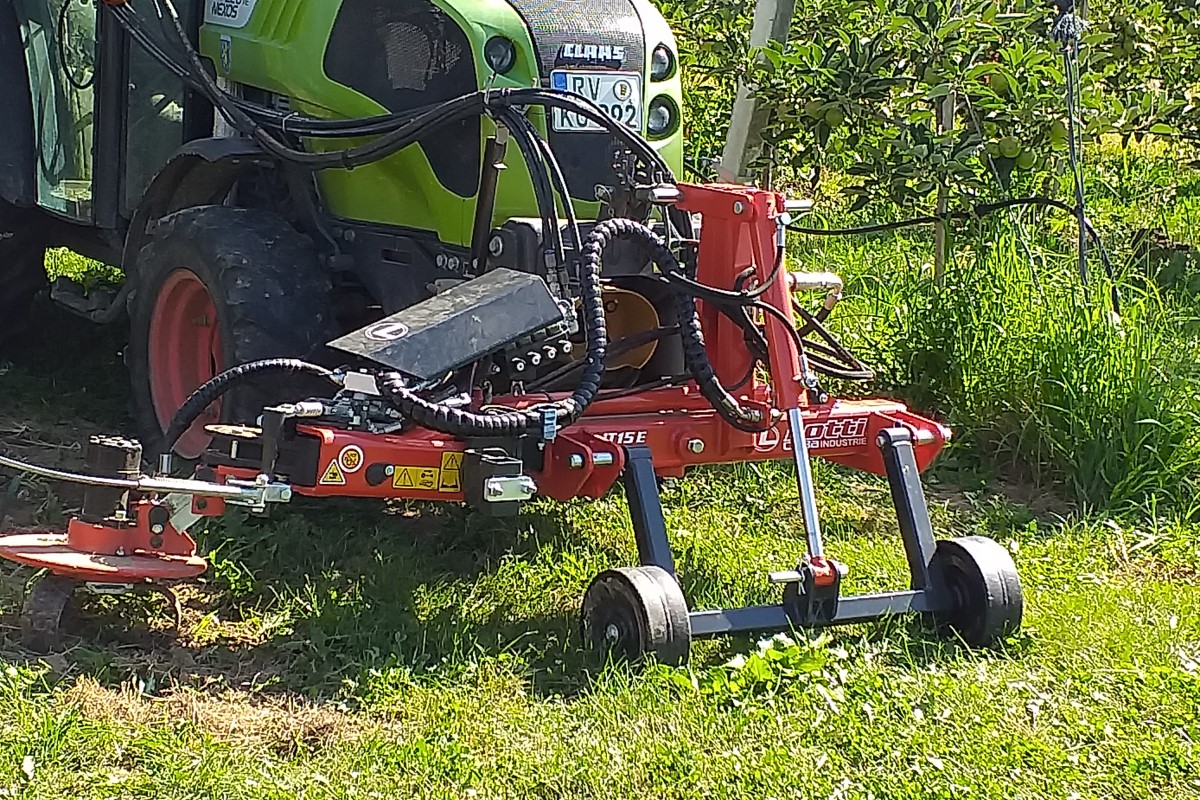

The In-row cultivator IT 15 is a multi-functional tool-carrier machine usable with lots of tools of Lotti range to carry out various inter-row workings, leaf canopy management and grass cutting.
The in-row cultivator IT 15 could operate in rows whose width is more than 2,2m. It is a reversible machine and it is set up for being mounted to a 3-point lifter. So, it could be mounted – in its different configurations – both on the front and on the back of the tractor.
The machine’s head, on which you can mount the tools, could be adjusted both positively and negatively, allowing to work also on hilly or terrace grounds. The machine needs a hydraulic supply with a minimal oil flow of 12-15L/min. Stability and precision are guaranteed by a solid and reliable frame and by the application of two regulable support wheels.
The IT 15 is available in following models:
IT 15 H: with hydraulic distributor with 2 functions
IT 15 E: with electro-hydraulic distributor with 4 functions
IT 15 A: connected to the tractor by a front bracket
IT 15 3A: projected for a reversible tractor

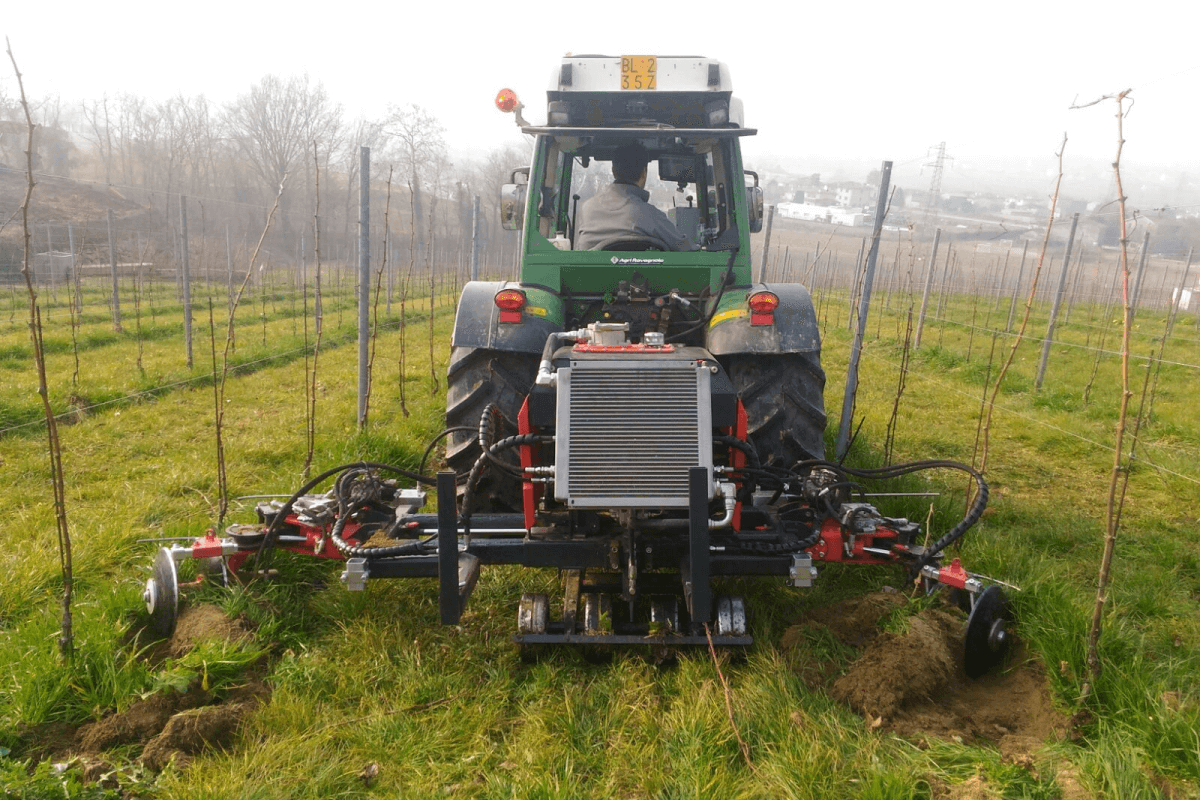

IT 200
Electro-hydraulic double rear independent inter-row cultivator, usable with a wide range of interchangeable Lotti tools. Easy to connect to the tractor via PTO and cardan. Thanks to its independent oil tank and its 5 pumps, it's suitable for all kind of workings: soil tilling, removal of weeds, choppping, ploughing back, earthing-up, harrowing, inter-row and leaf canopy cleaning, desuckering, grass cutting between trees. Its self-centring system allows the machine to always keep the centre of the row in order not to damage the trees.
CT 80 + DRF
CT 80 trimmer is a single machine with a robust column structure, projected for carrying out mechanical fruit thinning in orchards, improving the quality of fruits and favouring the tree’s balance. It is moreover usable with different tools of Lotti range for leaf canopy management. It must be mounted on the front part of the tractor on a 2nd category lifter. After work it is then possible to replace the trimmer on a proper standing foot, reducing the user’s risks.
The trimmer’s column is equipped with a vertical ram of 1000mm that allows to work on the entire extension of the leaf canopy. In addition, the column is tiltable both positively and negatively, making easier going in and out of the rows, as the trimmer could be easily placed in its central position. The different cylinders that control the rams enable also to tilt the fruit thinner, making its action effective in any orchard system it is applied.
The machine needs an hydraulic supply between 20-25L/min. oil flow.
CT 80 is controlled by an electro-hydraulic joystick to be kept in the tractor’s cabine, which enables you to carry out all its movements.
CT 80 N: that uses the tractor’s distributor for its movements
CT 80 E: with electro-hydraulic distributor
The fruit thinner – the news in Lotti product range – is mountable on the CT 80 trimmer, making therefore possible to mechanically carry out the fruit thinning. After various trials, it turned out that this tool reduces the costs related to fruit thinning – usually carried our by hand – between 60% and l’80%. This innovative machine enables to perform the fruit thinning safely for the tree as well as quickly and precisely at the same time.
In addition, it is at any time possible to adjust the engine’s revolutions, which could cover a range from 8rpm to 20rpm, by regulating the oil flow rate on the tool. This rate must in any case grant a flow between 5L/min and 20L/min.
The fruit thinner is equipped with an engine that grants a working surface of 300cm
Documents
470 Vicar air unit

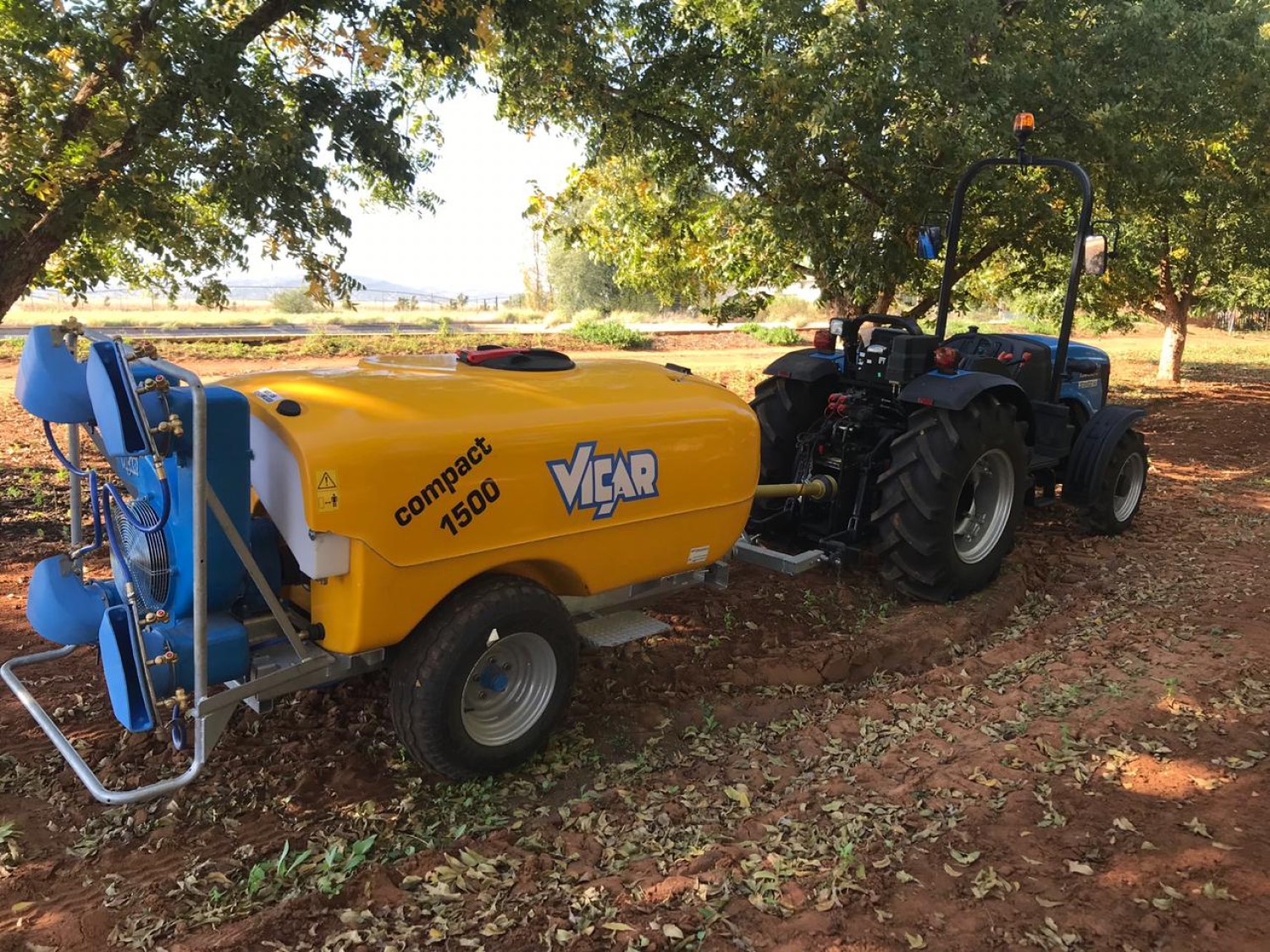

Trailed or tractor mounted sprayer for trellis and GDC vineyards with 400 Duplex turbine. The new turbine system allows the air to convey the water exactly where it's expected to be, increasing the treatment precision. This sprayer should value as sample for all the other VICAR models, which can be discovered in the catalog. Each model is available in the version of tractor-mounted or trailed sprayer and can be equipped with tanks with different capacity
450 Vicar air unit
Tractor mounted or trailed sprayer for orchards and vineyard, combinable with both polyethylene and fiberglass tanks adapt to any uses and application. The air unit can be equipped with towers of different length, so that it could suit any cultivation system.
The radial turbine is moreover able to direct the water exactly where it needs to be thanks to the air speed it moves, saving money on phytosanitary product.
