GIMAX was born in Italy in August 1990 with the production of electronic ballasts for the supply of fluorescent lamps.
In 1991, we introduced the first range of products linked to tubular lamps for portable and fixed use in industrial eviroment and shipyards, using as basic components unbreakable polycarbonate screens and the butyl rubber for closure sleeves and caps.
In 1993, GIMAX, completing a catalog already packed with safety lighting articles, began manufacturing distribution and transformation electrical panels in hard butyl rubbercontainers of its own design and printing.
The peculiarity of GIMAX is in fact the manufactory of products on direct specifications and requests from customers in order to meet their needs fully; Moreover, the experience gained in direct contact with the end user has allowed GIMAX to continually improve the quality of its products and increase their numbers.
With the aim of offering ever-growing products and services GIMAX has been certified by TUV ITALIA for its corporate quality management system in accordance with standards ?UNI EN ISO 9001: 2008?.
Our product range (all made in Italy):
Lighting fixtures -LED and Fluorescent-
with High IP
Rubber combination boxes (portable and wall mounted)
Transformers (portable and wall mounted)
Cable reels (rubber reel)
Machine work lamps
Year of establishment:
1991
Number of employees:
FROM 10 TO 19 EMPLOYEES
Annual turnover:
between 5 and 15 million Euro
Reference year of turnover:
2018
Export turnover:
0
Activities:
Manufacture of electric motors, generators, transformers and electricity distribution and control apparatus
Manufacture of electricity distribution and control apparatus
Manufacture of wiring devices
Manufacture of other lighting equipment
Manufacture of other electrical equipment
Electrical, plumbing and other construction installation activities
Wholesale of household, office and shop lighting equipment
- Videos
- Catalogue
GXL LED working lamp
Modulus Series and Rubber Combinations
Company profile
- Contact Information
- Business Proposals
Company:
GIMAX SRL
Web site:
Address:
VIA DELL'ARABESCATO S.N.C.
City:
PIETRASANTA (LU)
Zip Code:
55045
Social media:
Tag:
No business proposals uploaded
- Map

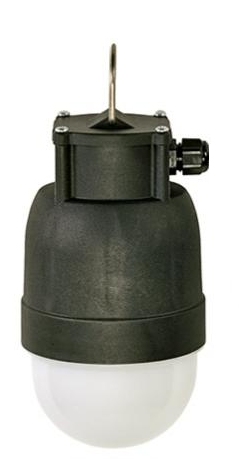

LED Nanolight
Features
Upper part (junction box) formed by an unique body in NYLON 6.6
N.1 cable gland PG 13 and n.1 threaded cap (to be replaced with a PG13 for wiring through)
Protection degree IP65
Hanging hook
Inner ballast designed in H.V.I.C C-MOS tecnology (Hi Voltage Integrated Circuit) with low losses working in high frequency (>70Hz) to optimize longevity of led modules.
PFC (Power factor corrector) to reduce problems often due to power excess apparently used.
Photobiological hazard exempt according to IEC 62471
Diameter 105 mm (approx)
Height 200 mm (body) + 40 mm (hanging hook) (approx)
Weight 600 g (approx)

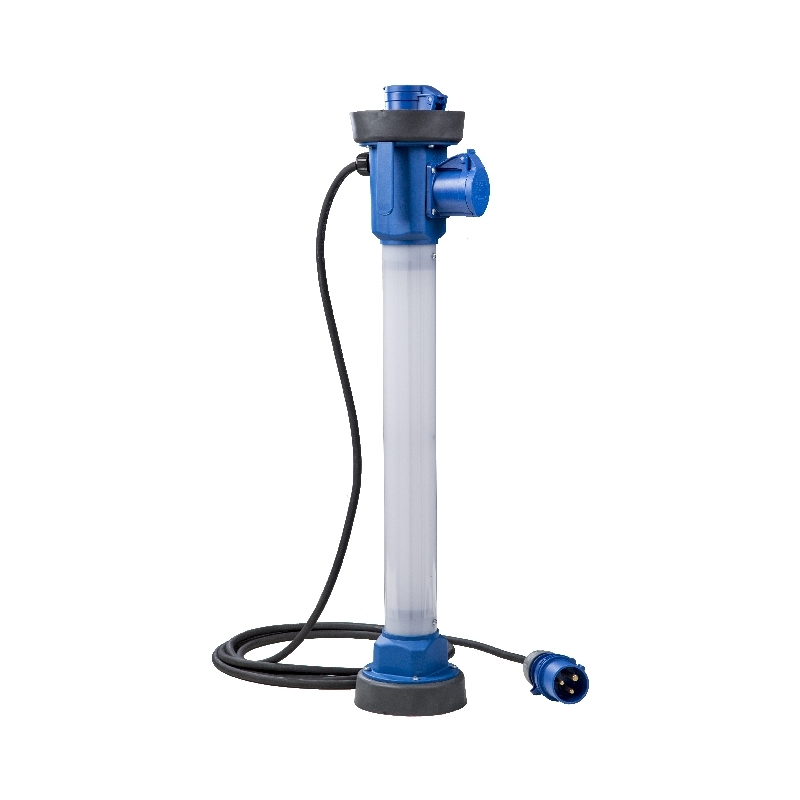

Gigalight LED Working Lamp
Features
Body in impact-proof insulating thermoplastic material with rubber bumper edge
Heat-resistant and UV-stabilized opaline polycarbonate shell
Hanging hook for vertical positioning
Operating temperature from - 20°C to +45°C
Receptacles IP44 or IP65 according the customer needs
Insulation class I - III (Norm IEC 64-8)
Dimensions 695 x 125 mm (L x max Diam)
Active P.F.C.
Power factor 0,97.
Built in compliance with EN 60928, EN 61547, EN 61000-3-2, EN 55015, EN60598-1, EN60598-2-1, EN61347-1, EN61347-2-13, EN62384.
Power: 24W
Luminous flux: 4.300 lumen
Color temperature 6500K
Life span 50.000 hours of operation
Emission angle 360 degree
Luminous flux > 4.000 Lumen
CE marking. Construction in accordance with CEI 34-21 and CEI 34-34

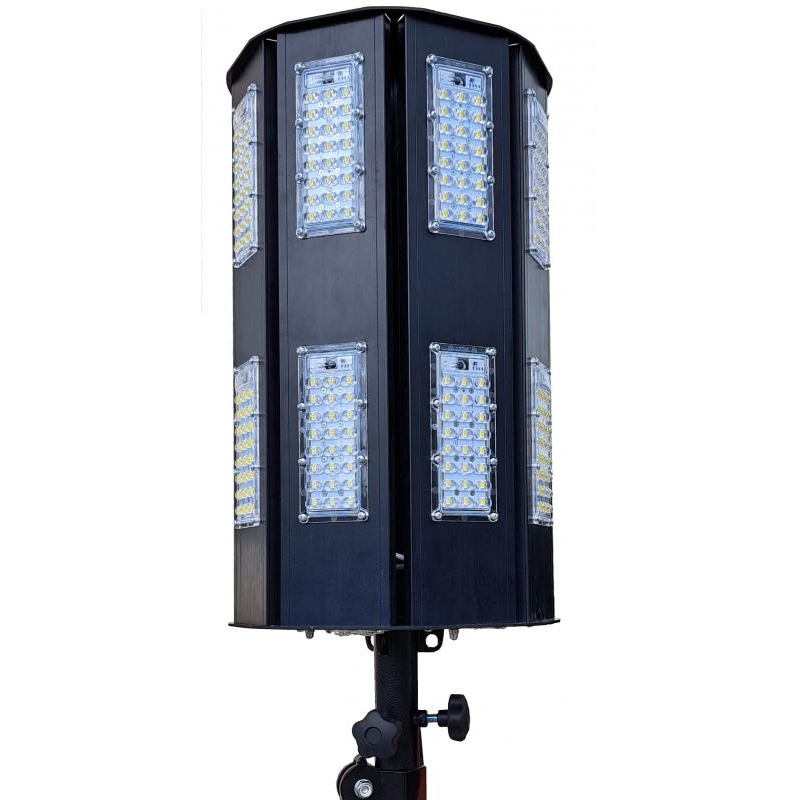

Saturn LED 100.000 Lumen
IP 6767 CE
Features
Supply voltage 230V
Power rating 640W with high efficiency Led modules.
Asymmetric focusing lenses with High IK (10)
Ballast working temperature -20°C +50°C
IR suppression according to EN 55015
Grid harmonics according to CEI EN 61000-3-2
Electromagnetic compatibility (EMC) according with CEI EN 61547, 61000-3-3
Conformity with: 2014/35/EU, 2014/30/EU, 2009/125/EC, 1194/2012, 2011/65/EU.
In compliance with following requirements: Standards IEC/EN 60598-1, IEC/EN 62031, IEC/EN 61547, IEC/EN 61000-3-2, EN 55015, CISPR 15, IEC/EN 62717 and European directives 2006/95/EC, 2009/125/EC, 1194/2012, 2011/65/EU.
Photobiological hazard within the group 1 (low risk) according to IEC 62471
