Manufacturer of Laboratory Equipment for RUBBER and PLASTIC. From sample moulding and preparation to tests such as Hardness, Density, Abrasion, Flammability + Low Temperature behaviour, Physical properties, Elasticity, Rubber Viscosity+Rheology, Compression strength, Ageing and Ozone conditioning, Tackiness, Fatigue.
Since 1979 Gibitre designs, manufactures and calibrates instruments, now installed all over the world and internally develops both each operating software and the data handling/post processing platform "Datagest"
Gibitre is official ACCREDIA and ISO 17025 accredited calibration Laboratory
Year of establishment:
2001
Number of employees:
FROM 20 TO 49 EMPLOYEES
Annual turnover:
Not available
Reference year of turnover:
2021
Activities:
Manufacture of measuring testing instruments, clocks and watches
Manufacture of other instruments and appliances for measuring and testing nec
Rental and operating of own or leased real estate nec
- Videos
- Catalogue
RHEOCHECK MD - Rheometer to measure cure and vulcanization characteristics of rubber compounds.
TENSOR Check is a fully programmable tensile-testing system suitable for testing mechanical characteristics of materials including rubbers, plastics, composites, adhesives, leather and many more.
The LABORATORY PRESS is an essential tool to prepare samples with reproducible characteristics in rubber and plastic materials. Uniform temperature distribution over the platen Surface and mechanical solidity to ensure constant thickness of the sample and consistent closure force are basic elements to ensure this result.
DIGITAL SHORE Testers for the performance of hardness tests that can be used manually or in combination with support. The instrument can be used as stand-alone device or can be connected to HardnessCheck software for automatic storage of test results.
DENSITYCHECK - Densimeter, allows to measure the density of compact products, expanded (non-absorbent) products, pellets, rubber powders and liquids through the hydrostatic method. The instrument measures with automatic movement in only 10 seconds.
Gibitre General Catalogue, English - overview of all the instruments we manufacture
Gibitre Gesamtlatalog, Deutsch - Übersicht der hergestellten Geräte
Instruments Selection for the Plastic Industry, English
Instruments Selection for the Tires and Rubber Industry, English
Instruments Selection for the Foam Industry, English
- Contact Information
- Business Proposals
Company:
GIBITRE INSTRUMENTS S.R.L.
Address:
VIA DELL'INDUSTRIA 73
City:
BERGAMO (BG)
Zip Code:
24126
E-commerce:
Social media:
Tag:
No business proposals uploaded
- Map
Tensor Check - Tensile and UTM Machine
Gibitre Tensor Check is a fully programmable tensile-testing system suitable for testing mechanical characteristics of materials including rubbers, plastics, composites, adhesives, leather, etc.
The instrument permits to perform traction, compression, hysteresis, peeling, flexural and shear tests in conformity with international standards.
A very large range of grips, platens and test jigs to perform all the different tests is available. Furthermore Gibitre is completely capable and independent in designing and manufacturing customized elements.

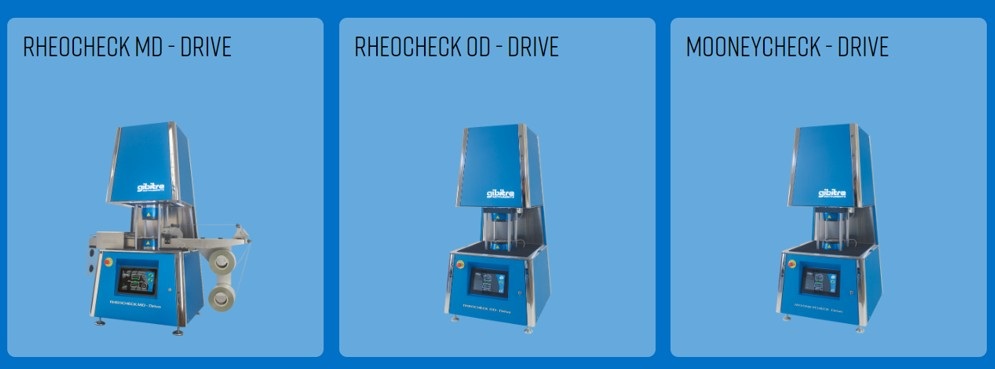

Rheometers MD and OD (Moving Die/Oscillating Disc) + MooneyCheck Viscometer
RHEOCHECK MD and OD - Drive measure the cure characteristics of a rubber compound in conformity respectively with the international standards ISO 6502-3 / ASTM D 5289 and ISO 6502-2 /ASTM D2084.
MOONEY CHECK - Drive is a Mooney Viscometer, which permits to measure the Mooney viscosity, Pre-curing (scorch) and Stress Relaxation of uncompounded or compounded rubbers in conformity with ISO 289-1, ISO 289-2, ISO 289-3, ASTM D 1646.
Shore and IRHD Automatic and Manual Hardness Testers
AUTOMATIC HARDNESS CHECK - Drive, designed for flexible configuration to meet customer-specific testing requirements. Features a motorized stand with a digital display and interchangeable measuring heads for various hardness scales (Shore: A, D; A0; 00; AM (micro) - IRHD: Micro, Normal, Hard,
Low - VLRH (Very Low Rubber Hardness). The Hardness Check Software suite completes and fully enhances the instrument's potential.
MANUAL DIGITAL HARDNESS Check - Drive, hardness tester that can be used manually or in combination with support. The instrument can be used as stand-alone device or can be connected to HardnessCheck software for automatic storage of test results. Scales: Shore A, D, 00, A0.
LASER REVOLUTION HARDNESS Check - Drive, most advanced solution for automatic serial hardness measurement of rubber or plastic parts. Perfect to test small parts difficult to be centered manually. Interchangeable heads with scales Shore and IRHD. Hardness Check Software suite.
Ozone Check and Flammability Tester
FLAMMABILITY CHECK: Instrument for flame resistance test according to UL 94 standard fitted with:
Stainless steel cabinet with tempered glass viewing window and interior light
Bunsen burner according to ASTM D5025 standard
Flow meter for gas flow regulation
Support for flame angle set (0°, 20°, 45°)
Slide for the regulation of the position of the flame
Sample holder according to the standards with sample position regulation
Digital thermometer for the measurement of the temperature of the flame integrated in the instrument
Digital Timer with 0.1 second resolution for the measurement of test time
Exhaust fan to remove combustion fumes
OZONE CHECK - UV: The instrument is a complete ozone cabinet conforming to ISO 1431 and ASTM D1149 for the measurement of the resistance to cracking under static or dynamic tensile strain of rubber samples or technical articles. The instrument permits to set the test conditions in order to comply with international standard methods.
It allows execution of static and dynamic tests, providing automatic regulation of Ozone Concentration, Temperature and Air Flow.
The Instruments also permits the regulation of:
Ozone Concentration, between 10 and 500 pphm (UV absorption detector);
Test temperature, between ambient +5°C and +70°C;
Air Flow in the Test Chamber, between 1 and 3 air changes/minute

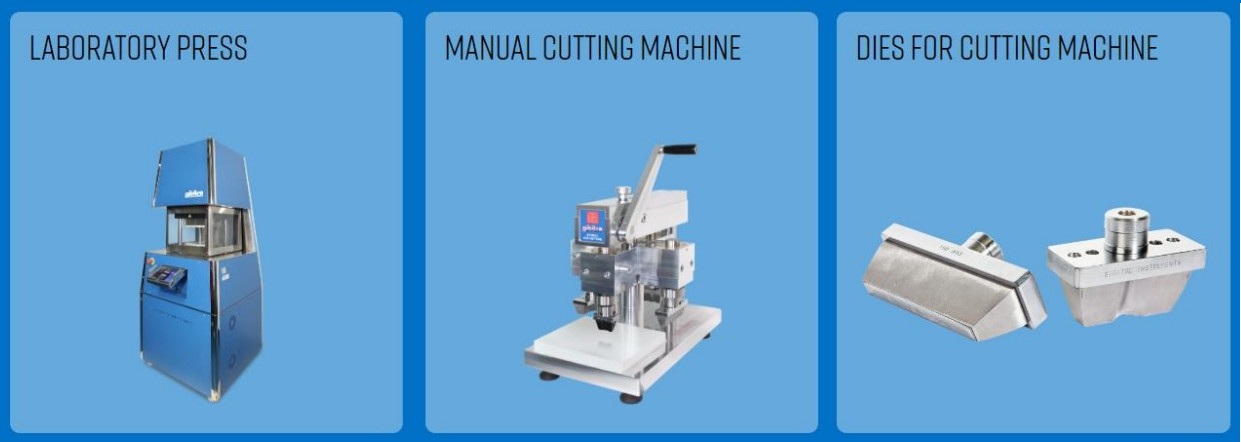

Laboratory Press and Manual Multi Head Die Cutter
LABORATORY PRESS: The laboratory press is an important tool for the preparing of samples with reproducible characteristics.
Uniform temperature distribution over the platen Surface and mechanical solidity to ensure constant thickness of the sample and consistent closure force are basic elements to ensure this result. Suitable to mould both rubber plates and thermoplastic slabs or parts
Fully conforming to ISO 2393, ISO 293, ASTM D3182 Standards
Mechanical structure with 4 columns (with 60 mm diameter)
Hydraulic system with 25 tons closure force
Extremely uniform temperature distribution over the platen surface (± 0.5°C)
Hi speed heating (up to 15°C/min) and Cooling (up to 50°C/min)
Touch-Screen display for complete machine control
40 programmable moulding cycles
Connection to software for storage to SQL database of the moulding cycles & curves of your products
Closed moulding area for easy fume aspiration
Pneumatic Protection doors with safety lock
MULTI HEAD DIE CUTTER: Solid machine for preparing samples provided with rotating cutter holding system.
One or more (up to 4) cutter holders can be installed. The cutter to be used can be quickly selected by rotating the cutter holding system.
Each cutting unit has independent adjustment of vertical position to improve ease of use and repeatability in specimen production.
Each cutting unit has independent adjustment of vertical position to improve ease of use and repeatability in specimen production. Optimized construction to minimize the force needed for the cutting.
