MIGI Srl - Integrated Power System

DESIGN AND CONSTRUCTION INNOVATIVE MULTI-FUNCTION MACHINES.

Our multifunctional-machines consents saving time, space, and effort in regards to moving and transportation of the various equipment; in this way, it consents to save on the effort of human resources.
This translates into a substantial benefit for the operator since the physical effort is limited to moving only one piece of equipment and less space is required to transport it.

With these principles in mind, we have developed a performance leader at the top of its class that is also compact and easy to transport.

Year of establishment:

2008

Number of employees:

UP TO 2 EMPLOYEES

Annual turnover:

between 250.000 and 500.000 Euro

Reference year of turnover:

2020

Export turnover:

0

Activities:

Manufacture of all other various special-purpose machinery nec

Wholesale of other various machinery and equipment nec

Intermediation service activities for non-specialised retail sale


MIGI 302 BATTERY - DEMONSTRATION. Here we are giving an example of a possible intervention that you can do with our MIGI 302 machine, Eco-Friendly, without a petrol or diesel engine. This model use batteries as “engine”, no petrol or diesel required, super-silent, very low noise if you use the air compressor, no noise if you use only the generator, a 3.0 kW, 1Ph Power Generator and an air compressor with 30 liters tank. We are simulating an assistance during the night, in the city center full of houses and with sleeping people. You have to avoid the noise as much as possible. You can imagine a car or truck broken on the street during the night and a Roadside assistance Van equipped with MIGI’s 302 machine with power generator and air compressor, to help the mechanics to fix the problem. With the power generator you can provide the illumination to see and to work, with air compressor you can remove and repair a wheel.

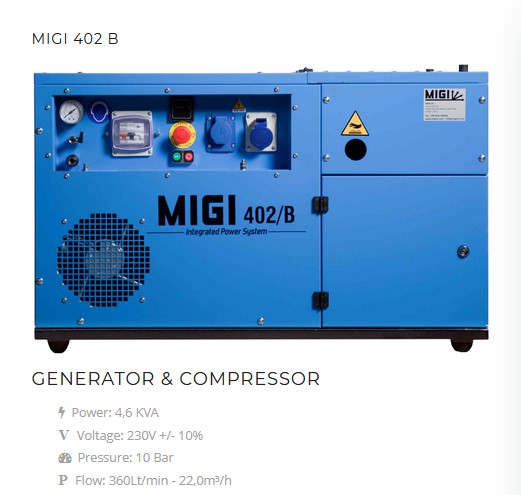

MIGI 402B - Demonstration. Here we are giving an example of a possible intervention that you can do with our MIGI 402B machine. This model has a petrol engine with electric starter, a 4.4 kVA 1Ph Power Generator and an air compressor with 60 liters tank. We are simulating an assistance during the night. You can imagine a car or truck broken on the street during the night and a Roadside assistance Van equipped with MIGI’s 402B machine with power generator and air compressor, to help the mechanics to fix the problem. With the power generator you can provide the illumination to see and to work, with air compressor you can remove and repair a wheel.


MIGI 504 Demonstration - Multifunctional machine with: Electrical generator, Air compressor, Pressure washer, Inverter welding machine.

MIGI short catalogue (English - Italian)

Reference List - Some of our customers around the world

Photos with some examples of use of our machines

Company:

MIGI SRL

Telephone:

+39 0432.746434

Address:

VIA CORTOLET 19

City:

SAN GIOVANNI AL NATISONE (UD)

Zip Code:

33048

No business proposals uploaded

TECHNICAL SPECIFICATIONS
Engine:
- HONDA GX 270.
- KOHLER CH 395.
Fuel type: Gasoline.
Fuel tank capacity: 5,3 Lt.
Starting system: Manual recoil.
Weight and dimensions: 148Kg - 1010 mm x 610 mm x 650 mm (L x P x H ).
AC alternator type: Single-phase.
Engine and Voltage: 4,6 kVA - 230 V +/- 10%.
In-taken air: 360 Lt / min - 22,0 m³ / h.
Pressure : 10 Bar.
Air tank capacity: 20 Lt.

Optional:
- Starting system: Electric.
- Additional 80 Lt tank.

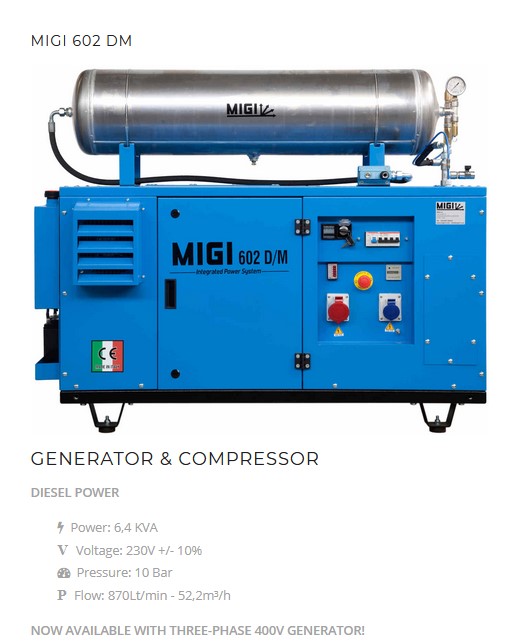

TECHNICAL SPECIFICATIONS:
Engine: LOMBARDINI 15 LD 440.
Fuel type: Diesel.
Fuel tank capacity: 9 Lt.
Starting system: Electric.
Weight and dimensions: 280Kg - 1400 mm x 600 mm x 1150 mm (L x P x H ).
AC alternator type: Single-phase.
Engine and Voltage: 6,4 KVA - 230 V +/- 10%.
In-taken air: 870 Lt / min - 52,2 m³ / h.
Pressure: 10 Bar.
Air tank capacity: 80 Lt.

Optional:
- Additional three-phase 400V AC alternator.



This is a very special machine, made on request.
The model in the photo has been made in more than 30 units for an Army of a Western Country.
Please, contact us for more information.

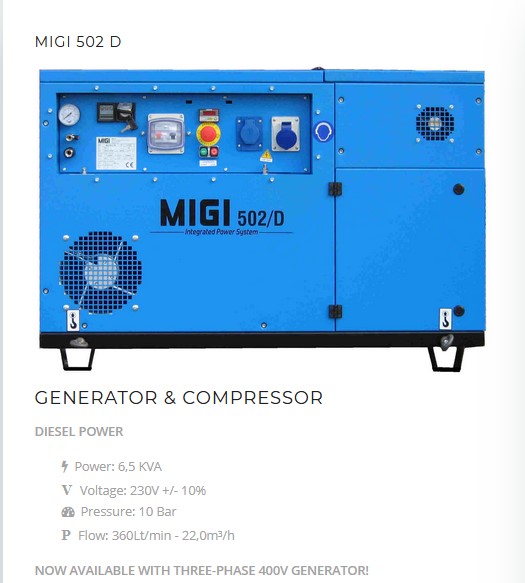

TECHNICAL SPECIFICATIONS:
Engine: LOMBARDINI 15 LD 440.
Fuel type: Diesel.
Fuel tank capacity: 5 Lt.
Starting system: Electric.
Weight and dimensions: 225Kg - 1010 mm x 730 mm x 760 mm (L x P x H ).
AC alternator type: Single-phase.
Engine and Voltage: 6,5 KVA - 230 V +/- 10%.
In-taken air: 360 Lt / min - 22,0 m³ / h.
Pressure : 10 Bar.
Air tank capacity: 20 Lt.

Optional:
- Additional 80 Lt tank
- Additional three-phase 400V AC alternator
