RIDART is an Italian company, based in Varese, with more than 50 years of experience and history in petrochemical sector developing and manufacturing safety valves. Experience, unflagging commitment and great passion for our work have allowed us to develop reliable products, tailored to the market needs. All this without forgetting to look at the future as regards innovation and technological development.
We buy raw materials such as brass, aluminium, stainless steel and we transform them into high quality safety devices.
We export our products to over 50 countries and our goal is to increase the global presence.
• Forecourt Equipment: Overfill Prevention Valves, Emergency Shear valves, Flame Arresters, Pressure Vacuum Vents, Vapor Recovery Couplings.
• Tank Truck Equipment: Dry Break Couplings, API Adaptors, Loading Valves and Couplings.
• Mobile tank Accessories: Adjustable Check Valves, Anti-Siphon Valve, Anti-Roll Valves, Safety Valves.
Our range of safety devices is designed to protect the tanks from over pressure and the dispersion of liquids in both normal and emergency conditions.
All our products meet current legislations and standards: ATEX Directive 2014/34/EU covering all equipment used in confined areas including Flame Arresters: EN ISO 16852 and overfill prevention valves EN ISO 13616; EN ISO 80079.
Number of employees:
FROM 20 TO 49 EMPLOYEES
Annual turnover:
between 5 and 15 million Euro
Reference year of turnover:
2022
Export turnover:
From 2.5 to 5 million Euro
Activities:
Machining of metals
- Videos
- Catalogue
Video Corporate Ridart
How is the fuction of Ridart's Products in the gas station
The Overfill Prevention Valves, What's the function and feautures?
The in line flame Arrester Ridart, why they are very important for the safety.
How we obtain a certification for the end of line flame arrester, see the explosion test !
the most important Ridart's articles
Company Profile Ridart
Ridart Catalogue 2023
- Contact Information
- Business Proposals
Company:
RIDART SRL
Web site:
Address:
Via Adua, 17
City:
GAZZADA SCHIANNO (VA)
Zip Code:
21045
Social media:
Tag:
No business proposals uploaded
- Map

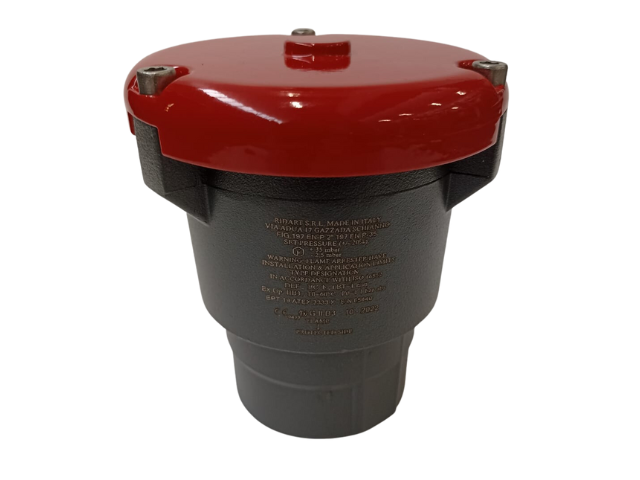

VACUUM VENT WITH FLAME ARRESTER
PRESSURE VACUUM VENT
WITH END OF LINE DEFLAGRATION FLAME ARRESTER
Pressure vacuum vent model 197 can be manufactured both with flame arrester or without it. End-of-line flame arresters contain ribbon coil, an element made of stainless steel that prevents the propagation of the flame inside the tank.
Pressure vacuum vent is normally used in the vapour recovery system (Stage 1) and it is designed to regulate the pressure inside the storage tank and to protect it in case of overpressure.
During normal operation the valve is closed thus helping to reduce the evaporation, saving environment and product loss.
Documents

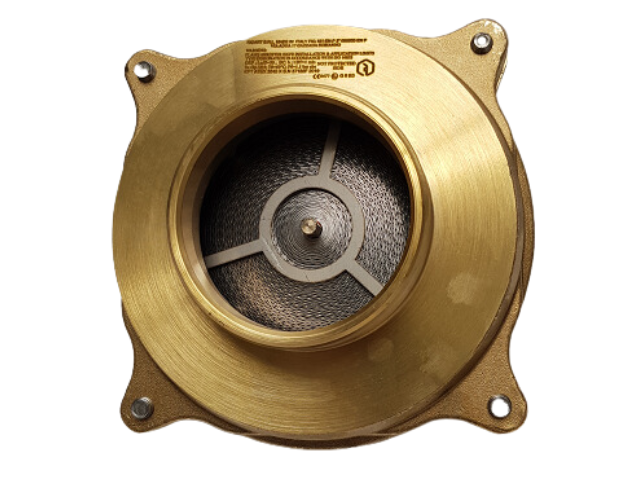

IN LINE DEFLAGRATION FLAME ARRESTER
IN LINE DEFLAGRATION FLAME ARRESTER VALVES
The In Line Flame Arrester Ridart is a Protection System with stainless Steel ribbon coil: deflagration in-line flame arrester in according with Directive 2014/34/EU and harmonized standard EN ISO 16852:2016.
During the filling of a tank, the free vent discharge vapours that may ignite due to atmospheric or accidental causes.
The tank shall be protected to prevent the propagation of flames into the container.
This is the purpose of our Flame Arrester for line deflagration .
Inside there are two ribbon coils certified in stainless steel, which allow the dissipation of flames.
Documents

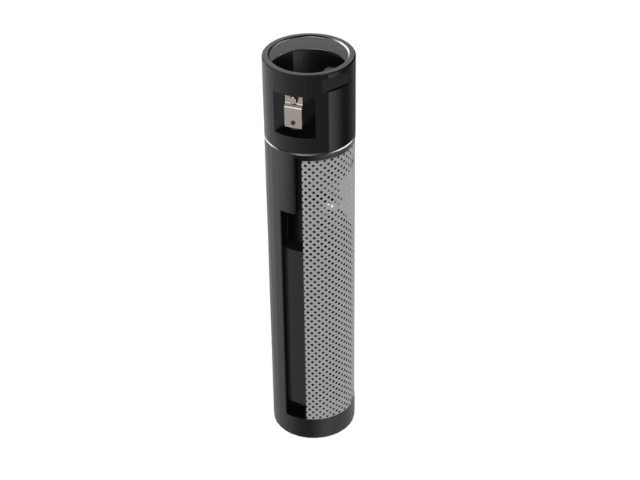

OVERFILL PREVENTION VALVE
OVERFILL PREVENTION VALVES 442 Series
with NEW CERTIFICATION EN ISO 13616-1:2016; EN ISO 80079-36:2016
The Overfill Prevention Valve Ridart is designed to prevent the overfill of underground storage tanks by providing a positive shut-off of product delivery
Documents

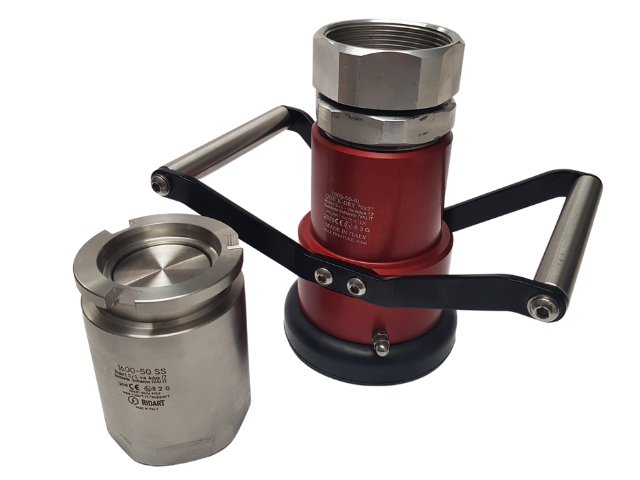

DRY BREAK COUPLIGS
DRY BREAK COUPLER FUEL TRANSFER VALVES
The RIDART QUICK DRY is used to prevent any possible leaking during the process of transferring fluids during the loading/discharge of tank trucks.
There are different materials and sizes.
Web site
https://www.ridart.it/quickdry.html
Documents

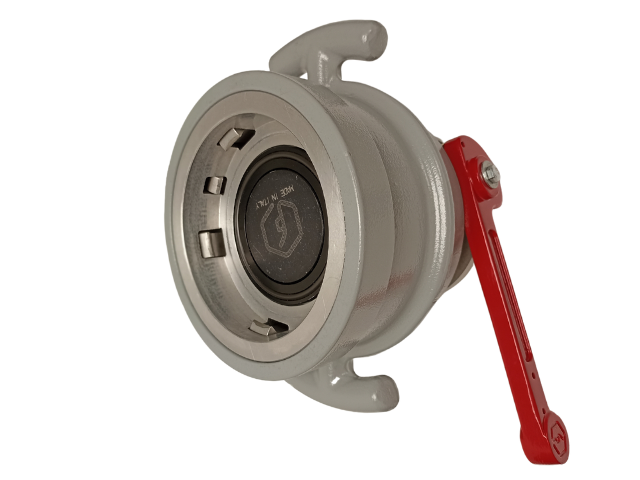

API RP 1400 COUPLINGS
ACCESSORIES FOR LOADING/UNLOADING
API ADAPTER FUEL TRANSFER VALVES
The adapter API RP 1004 is used to prevent any possible leaking during the process of transferring fluids during the loading/discharge of tank trucks.
There are different versions of the adapter, with and without a lever for manual opening and different sizes
Documents
