Gadi is a Plast Project brand, a company established in 40 countries all around the world, with more than 40 years experience manufacturing high performance, eco-friendly, state-of-the-art and worldwide spread irrigation fittings, monitoring carefully the whole stages from the project to the production.
Number of employees:
FROM 50 TO 99 EMPLOYEES
Annual turnover:
between 2.5 and 5 million Euro
Reference year of turnover:
2001
Export turnover:
From 250.000 to 750.000 Euro
Activities:
Manufacture of plastic plates, sheets, tubes and profiles
Manufacture of other various plastic products nec
Manufacture of other agricultural and forestry machinery
Manufacture of sports goods
- Videos
- Catalogue
Gadi irrigation Video Corporate Full EN
Video de la empreza - Gadi Irrigación ES
Brochure PlastProject_eng_ita_esp
2022 GADI Catalogue (Partial - Dowload the complete catalogue on https://www.gadirrigation.com/en/download-area/))
- Contact Information
- Business Proposals
Company:
PLAST PROJECT SRL
Web site:
Address:
CONTRADA BORGESIA SN
City:
FRANCOFONTE (SR)
Zip Code:
96015
Social media:
Tag:
No business proposals uploaded
- Map

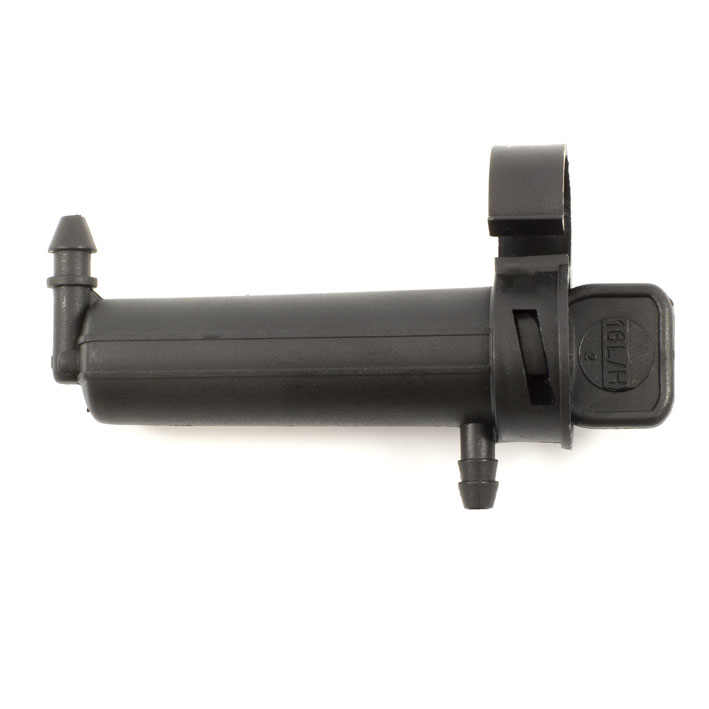

Lem inspectable dripper, with filter
Lem and Lem UP drippers are classical cigar drippers. They are inspectable and easy to clean, to allow use even after
clogging. The different kinds of materials used to manufacture them make them particularly simple to take apart.
APPLICATIONS:
Extremely versatile, especially in systems with water that is not particularly filtered. Ideal for direct assembly on tubes, where self-compensating
drippers are not necessary.
RAW MATERIALS:
Body made of anti-UV stabilized, black polypropylene. Insert with labyrinth made of black high-density polyethylene, also anti-UV stabilized.
SPECIFICATIONS:
- Passage to a turbulent fl ow, wide section labyrinth with minimum risk of clogging
- Filter with pre-chamber for collecting impurities before they enter the labyrinth
- Support clip for Ø16 or 20 tube integrated on the dripper body
- Outlet with attachment for Ø3.5x6 micro-tube (only for standard “Lem” version, art. 1010)
- Available in 4, 8, 16, 24 and 36 Lt/h
Web site
https://www.gadirrigation.com/en/
Documents
Nautilus supporting hook with water run stopper, with fast snap-hook system
Nautilus supporting hook with water run stopper, with fast
snap-hook system
Web site
https://www.gadirrigation.com/en/

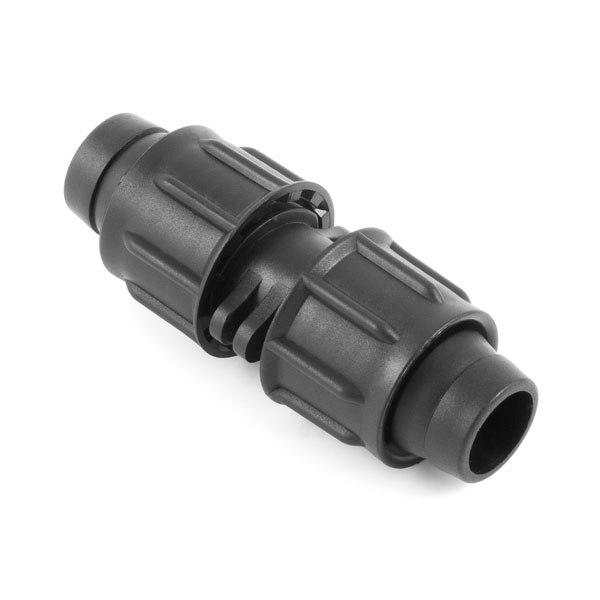

POLY Coupling FOR PE PIPES WITH THICKNESS FROM 0.75 TO 1.40 MM (FROM 30 TO 55 MIL)
POLY DRIPLINE FITTINGS are designed FOR PE PIPES WITH THICKNESS FROM 0.75 TO 1.40 MM (FROM 30 TO 55 MIL)
Web site
https://www.gadirrigation.com/en/

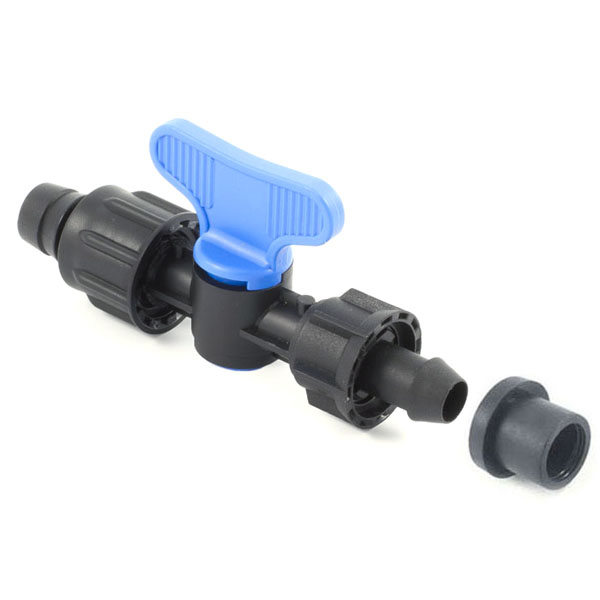

Valve with Tape-gasket and nut off takes, from PE or PVC pipe
Inexpensive multiple-purpose, super compact cylinder valve, formed by 2 pieces and 2 O-rings. Though small in
size, it features a 9 mm passage hole that guarantees minimum load loss in the parts of the system where it is
installed.
APPLICATIONS:
Extremely versatile, especially in short and medium-length secondary irrigation wings, or in driplines. Especially
suitable in fertigation systems.
RAW MATERIALS:
Valve made entirely with anti-UV stabilized, black polypropylene, reinforced with fiberbreglass. O-rings in NBR
(nitrilic rubber), resistant to petrol, oils, vegetable and animal fats, many solvents and chemical agents present
in fertigation.
SPECIFICATIONS:
Simplified construction formed by only 2 pieces with release assembling system
Watertightness ensured by 2 wide-section O-rings (2.62 mm)
Particularly smooth opening and closing of valve
Possibility of bi-directional installation thanks to the opening/closing symmetric-shaped throttle
Brightly coloured throttle so the valve is easy to find in the system
Ø9 mm internal passage on the valve body
Wide range of versions available, to satisfy various kinds of applications
Threaded attachments according to UNI EN 10226 (ex UNI ISO 7/1)
Maximum suggested working pressure: 4 bar at 23 ± 3°C
Documents

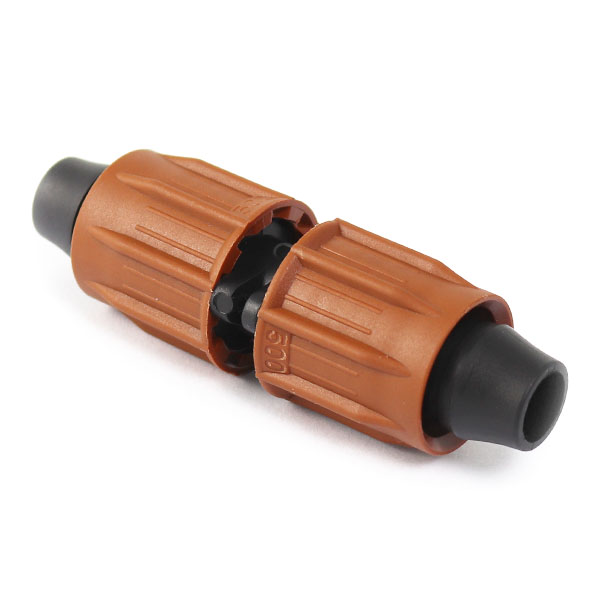

TAPE Coupling - FOR PE PIPES WITH THICKNESS FROM 0.15 TO 0.65 MM (FROM 6 TO 25 MIL)
TAPE PIPE FITTINGS WITH NUT are designed FOR PE PIPES WITH THICKNESS FROM 0.15 TO 0.65 MM (FROM 6 TO 25 MIL)
