Fraccaro is the European reference brand for ceiling-mounted radiant heating and cooling systems. We produce air-conditioning systems for any environment, whether civil or industrial: factories and warehouses, hangars and railway workshops, offices, banks, hotels, as well as large environments such as buildings, hospitals and airports. Fraccaro systems also help to avoid installation problems in such difficult areas as restoration and adaptation of cultural heritage buildings.
Year of establishment:
1989
Number of employees:
FROM 50 TO 99 EMPLOYEES
Annual turnover:
between 5 and 15 million Euro
Reference year of turnover:
1999
Export turnover:
From 2.5 to 5 million Euro
Activities:
Manufacture of fabricated metal products, except machinery and equipment
Manufacture of central heating radiators, steam generators and boilers
Manufacture of ovens and furnaces
Manufacture of permanent household heating equipment
Installation of other thermo-hydraulic plumbing systems
Business and other management consultancy activities
Architectural and engineering activities; technical testing and analysis
Architectural and engineering activities and related technical consultancy
- Videos
- Catalogue
Fraccaro - Heating and cost saving
Girad - Radiant strips heaters
Company profile
- Contact Information
- Business Proposals
Company:
OFFICINE TERMOTECNICHE FRACCARO - O.T.F. S.R.L.
Web site:
Address:
VIA SILE 48
City:
CASTELFRANCO VENETO (TV)
Zip Code:
31033
E-commerce:
Tag:
No business proposals uploaded
- Map

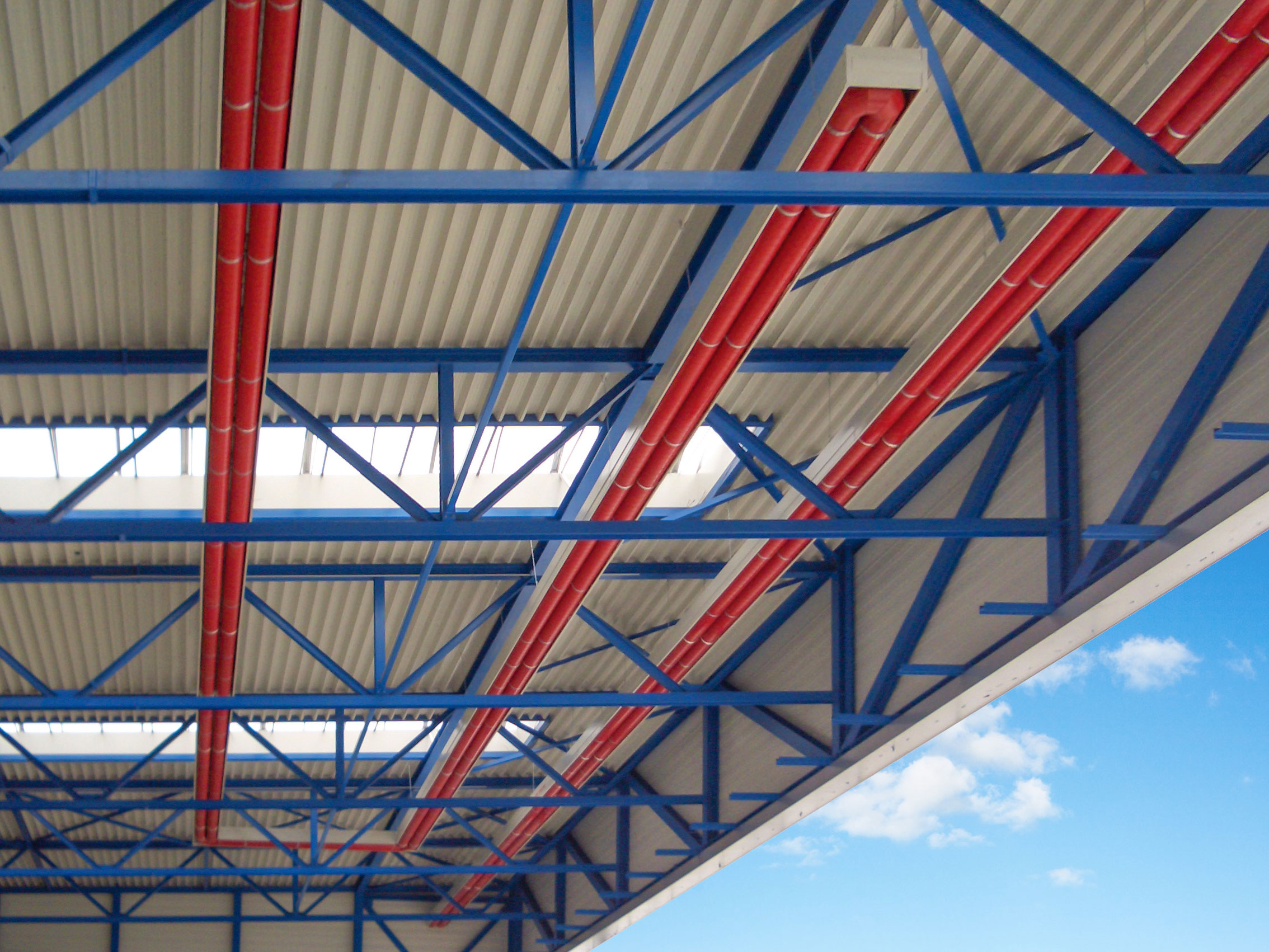

GIRAD - Radiant strips
The installation of the Radiant Modules consists of a patented heat generator, a single or double-pipe radiant circuit and a thermoregulation digital device.
The radiant circuit is a closed ring having go and return tubes working in vacuum condition. The gas or gas-oil burner produces a carrying fluid (a mixture of air and burned gases) which circulates at high speed inside the tubes of the radiant circuit. The tubes reach a superficial temperature from 100°C to 300°C (according to the requirements) producing the radiant energy necessary to provide the required environmental comfort.
The pipes are in aluminized steel, treated with special silicone paint and insulated with fiberglass panels on three sides. The radiant circuits are pre-assembled and tested in our factory; their installation on site turns out to be very easy also thanks to their flanged joints.
Key benefits:
- COMBUSTION EFFICIENCY up to 95% or 107% in models equipped with condensing unit*.
- ECOMIX BURNER air-stream gas burner with VENTURI tubes working in constant proportional modulation.
- ECOSAVING DEVICE that controls the chimney lock-gate and allows to keep optimal combustion efficiency at any power level**.
- PRE-ASSEMBLED MODULES They are produced and assembled in our factory to make the installation job easier and quicker***.
- THERMAL POWER up to 300kW and circuit lenght up to 160m.
- DIGITAL THERMAL CONTROL allows you to operate the system from remote stations and get remote assistance service (optional).
- MINIMUM MAINTENANCE through the reliability of all components and exacting tests complying with European standards both in the assembly line and in the in-house laboratory. All this ensures high reliability and long-term safety.
Other advantages:
- NO AIR STRATIFICATION or rather no warm air shall accumulate in the high areas of the room being heated; on the contrary, as far as the air goes upwards, the air temperature itself decreases.
- EXCELLENT THERMAL EMISSION generated by the large radiating surface with high emissivity.
- HEALTHIER AND CLEANER AIR There are no convective motions and consequent raise of dust, keeping the air healthy and clean.
- COMFORT TO CURRENT STANDARDS Our long experience stretching back over thirty years of activity, added to our participation in work groups specifying standards for products, make Fraccaro an ideal partner in this specific sector of heating technology.
- EASY, RAPID INSTALLATION thanks to an easy assembling procedure and installation on the ceiling with chains.
- NO FLOOR OR WALL SPACE IS REQUIRED as our GIRAD Radiant modules are installed on the ceiling.
- NO DANGER OF FROST as the lack of carrying fluids, such as hot water or steam, makes it possible to shut down the system for long periods without any unfortunate consequences.
- UNIFORMITY OF TEMPERATURE the heat produced through radiation by our Radiant Modules creates uniform temperature horizontally through the building, better than with any type of traditional heating.
- HIGHLY ECOLOGICAL as it allows for fuel saving, with great combustion performance and very low emissions of pollutants.
- MODULAR DESIGN i.e. for large surfaces more than one units are to be installed.
- MODULATING OPERATION of generators, so as to control the radiating heat emission according to the external temperature.
- NO AIR STRATIFICATION or rather no warm air shall accumulate in the high areas of the room being heated; on the contrary, as far as the air goes upwards, the air temperature itself decreases.
- RAPID WARM-UP due to lack of intermediate fluids requiring heating.
- CONFORM TO CURRENT STANDARDS Our long experience stretching back over thirty years of activity, added to our participation in work groups specifying standards for products, make Fraccaro an ideal partner in this specific sector of heating technology.
Documents

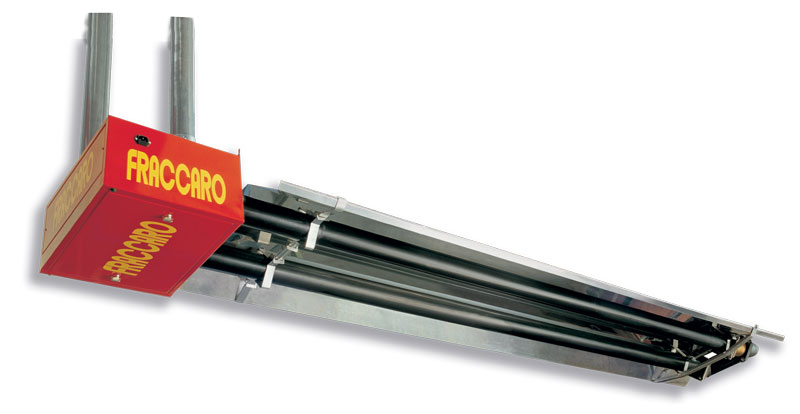

PANRAD - Radiant Tubes
Radiant Tubes
Heating equipments suited for all industrial environments with great height (form 4 to 20 meters) or with high thermal dispersion.
It includes a burner unit and a heat exchanger tube which reaches the temperature of 400 ÷ 550 °C, providing very high radiation efficiency, also by means of the reflecting cover located over the tubes, which focuses the thermal flow downwards.
By means of a centralized equipment control system it is possible to heat only the areas concerned by operations.
Advantages:
- A much healthier environment, as no moving air causes suspension of dust, common to all production processes.
- A very comfortable environment since Fraccaro’s PANRADs generate environmental conditions that ensure maximum well-being, by integrating the heat released by the human body through radiation.
- High thermal emission generated by the higher available surface temperatures and the high reflection coefficient provided by the reflecting dishes that reflect heat downward.
- Quick, easy installation obtained by very simple assembly and rapid ceiling installation with normal chains.
- No floor or wall space is necessary, because the appliances are installed on the ceiling, and high radiation emission drastically reduces the area required for the heating bodies.
- No danger of frost, as the lack of carrying fluids such as water or steam makes it possible to shut down systems for long periods without any unpleasant consequence.
- Uniform temperature: the heat produced by the Radiant Modules ensures uniform temperature horizontally throughout the building – better than any type of traditional heating.
- Environment-friendly: very low CO and Nox emissions.
- Negative thermal gradient: the heat is concentrated fully toward the floor.
You can heat individual work zones by activating only the appliances heating those zones, just as easily as lighting lamps to illuminate a particular area. This facility cuts down running costs considerably.
- Minimum maintenance due to the reliability of each component and exact checks on assembly line and in-house laboratory in compliance with EU directives. All this guarantees high reliability and safety over a long period.
- With this system in Italy you qualify for regional subsidies on energy saving (Law 10/91) due to highly economic running.
- Rapid warming due to lack of intermediate fluids.
