Barattieri Sinterizzati Srl is a leading manufacturer of high-precision sintered metal components, renowned for its expertise and commitment to quality. Using advanced sintering technology, the company produces a wide array of components such as gears, pulleys, reducers, bushings, bearing caps, rotors, and lobe pumps. These products are carefully engineered to meet rigorous performance standards, catering to a diverse range of industrial applications, including automotive, machinery, and energy sectors.
The company’s advanced manufacturing facility allows it to achieve exceptional accuracy and consistency in each component produced. Barattieri Sinterizzati Srl places a strong emphasis on quality control, with each product undergoing stringent testing procedures to ensure it meets both internal and industry standards. This commitment is underscored by the company’s ISO 9001:2015 certification, which reflects its dedication to maintaining the highest standards in production and customer service.
Furthermore, Barattieri Sinterizzati Srl operates a specialized quality control laboratory, where each component is meticulously tested and inspected. This facility enables the company to guarantee that its products are not only high-performing but also durable and reliable in demanding applications. With a skilled team and a customer-oriented approach, Barattieri Sinterizzati Srl continues to be a trusted partner in providing premium sintered metal solutions for industrial clients worldwide.
Year of establishment:
2010
Number of employees:
FROM 10 TO 19 EMPLOYEES
Annual turnover:
between 0.5 and 2.5 million Euro
Reference year of turnover:
2022
Export turnover:
From 75.000 to 250.000 Euro
Activities:
Forging and shaping metal and powder metallurgy
- Videos
- Catalogue
bushes calibration process
ISO 9001 TUV certification
Barattieri Sinterizzati Company Presentation
Technical presentation for technology change
- Contact Information
- Business Proposals
Company:
Barattieri Sinterizzati Srl
Web site:
Address:
Via Leonardo da Vinci 108
City:
FLERO (BS)
Zip Code:
25020
E-commerce:
Social media:
Tag:
No business proposals uploaded
- Map

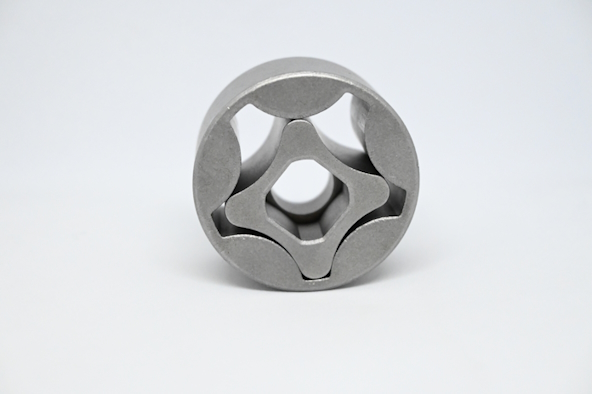

Sintered parts for Rotor pump
Lobe pumps for oil circulation in the lubrication circuit of various diesel pump models.
Parts are ground in pairs to ensure perfect pressure sealing during operation
Material: Sint D00
Operating clearance: 0.035 mm
Advantage: cost saving
Outer diameter of external rotor: 45 mm

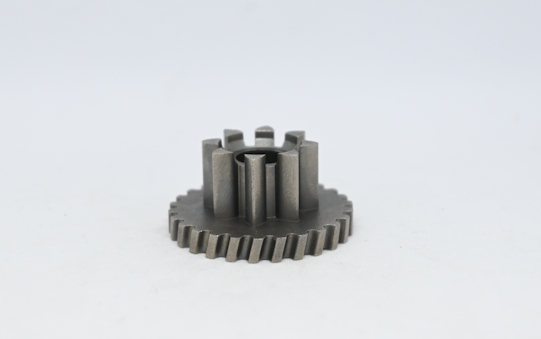

Sintered Helical Gear
Material: SintD30
Density: 6.90 g/cm³
Helix angle: 13°
Flange diameter: 31 mm
Application: Transmission gear for automotive window-lifting systems in both OEM and aftermarket sectors.
The helical flange is directly molded without the need for subsequent machining processes. The ability to mold the helical teeth has reduced the final cost by 30% compared to traditional techniques.

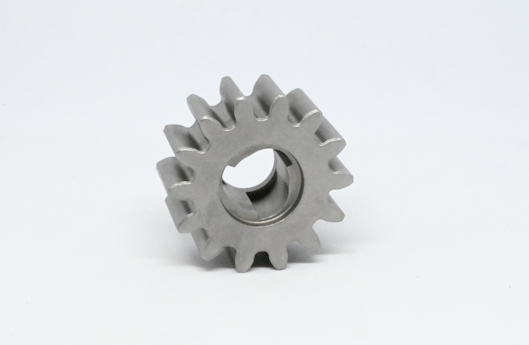

Sintered gear
Material: Sint D39
Tooth class: 9
Advantage: cost saving
Outer diameter: 40 mm
Straight-toothed gear with a complex-shaped internal seat, directly molded without the need for subsequent machining processes.

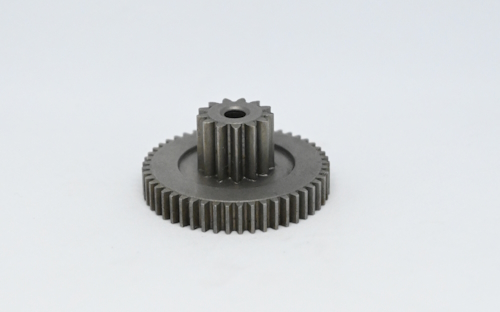

Sintered Double Gear
Material: Sint D39
Density: 6.8 g/cm³
Advantage: weight saving
Outer diameter: 36 mm
Double gear for gear motors used in window and door automation and movement systems.
The low density ensures weight savings in the finished assembly while maintaining the same mechanical performance.
