Plastic Metal has been manufacturing injection moulding machines for thermoplastics since 1960.
The entire design and the production processes are located in Italy , in a 15000 m2 plant in Gambellara ( VI). The wide range of injection moulding machines for thermoplastics i ncludes machines with double toggle clamping system and closing forces from 50 to 3200 tons, and machines with two-platen clamping system from 650 to 2300 tons.
The company strenght is providing flexible solutions, tailored to each customers’ specific needs, always guaranteeing strong technical know-how and an efficient technical support service. Through its sales and assistance network, Plastic Metal S.p.A. is present throughout Italy, and in many other countries.
Year of establishment:
1999
Number of employees:
FROM 50 TO 99 EMPLOYEES
Annual turnover:
between 15 and 25 million Euro
Reference year of turnover:
2001
Export turnover:
From 2.5 to 5 million Euro
Activities:
Machining of metals
Manufacture of plastics and rubber machinery
Manufacture of other special-purpose machinery nec
- Videos
- Catalogue
Plastic Metal S.p.a.
Plastic Metal Presentation
- Contact Information
- Business Proposals
Company:
PLASTIC METAL SPA
Telephone:
+39 0444440320
Web site:
Address:
VIA FRANCIA 6
City:
GAMBELLARA (VI)
Zip Code:
36053
E-commerce:
Social media:
Tag:
No business proposals uploaded
- Map

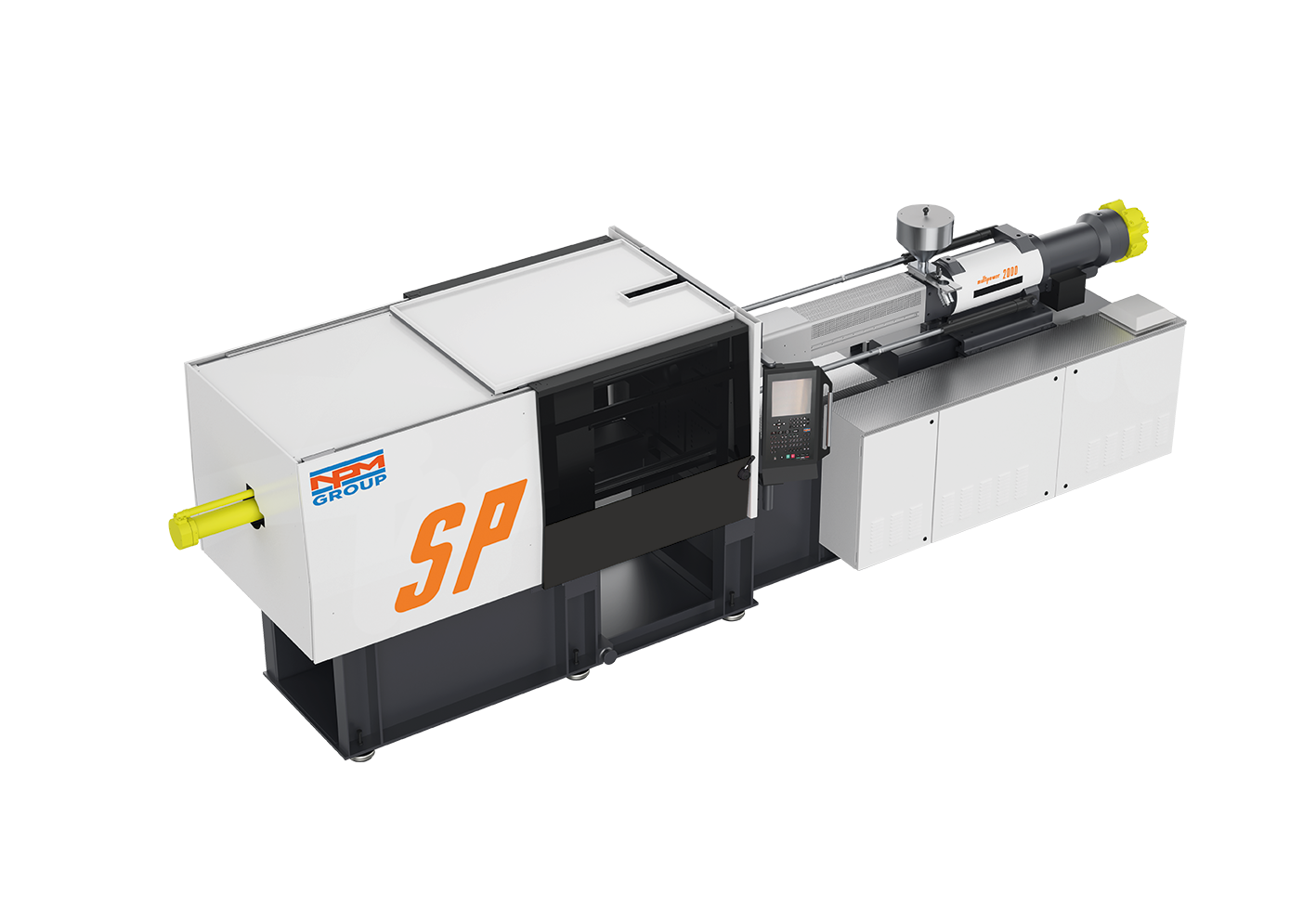

Multipower SP
The technological research for the improvement of traditional hydraulic systems has led to the development of a special servo-pump reducing between 30 % and 60% of t he energy used, compared to traditional systems without a servo-pump. Multipower SP combines high performance a nd energy saving with low costs, reliability over time, and the simplification of routine maintenance operations.
The servo-driven SP system allows for hydraulic moulding m achines operations to be particularly energy-efficient.
The hydraulic system of Multipower SP is simple, and e nsures high reliability over time.
The SP system with servo-pump is based on the use of a n electric brushless motor with permanent magnets connected to a high performance gear pump.
The variable speed servo motor control driver adjusts the pressure and the flow parameters of the hydraulic system to obtain the right amount of oil for each movement.
The system adapts continuously to the actual power demand, drastically reducing energy consumption.
The partialization of power used allows for the total shutdown of the engine in the “static phases” of the production cycle.
This results in energy savings up to 60%, especially in processes with long cooling times.
Thanks to the high efficiency of the system, hydraulic system c ooling is also optimally managed, avoiding overheating of t he oil. Extremely low noise level.

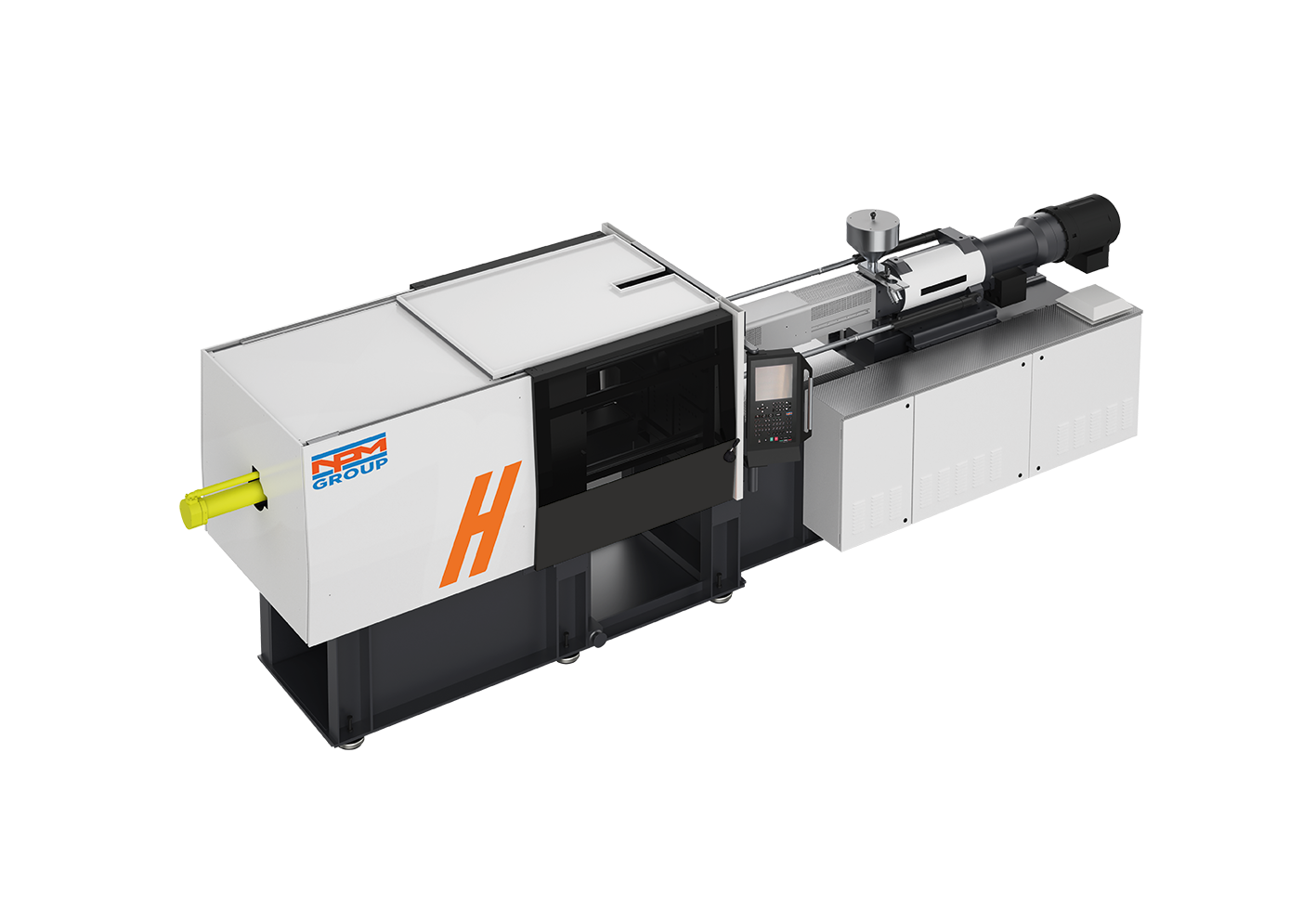

Multipower H
Fast and precise electrical movements are combined with the reliability and the power of the hydraulic systems, for highly competitive performance, and considerable energy savings.
For plasticization, screw rotation movement is operated by a directly connected brushless electric motor, without the use of belt or gear reductions.
The use of accumulators for a precise and high-speed injection fully satisfies even the most sophisticated moulding needs.
The particular concept of these accumulators allows for c onsiderable energy savings: a pump system with dedicated i nverter recharges the accumulators only up to the pressure level set by the moulding needs, and the shuts off, reducing e nergy consumption to the minimum.
The clamp unit is characterized by a 5-point toggle, while the movement is regulated by a high-performance hydraulic piston suitable for very fast cycles.
Overlapping movements for improvement of the cycle time.
Intelligent software, thanks to three integrated options: ECO, NORMAL, FAST . The three functions make the most out of the potential hydraulic and electrical systems combination, in order to achieve the best speed performance and the highest energy saving, whatever moulding conditions are.
Multipower H also provides a special set-up for packaging moulding, with an increase in power dedicated to the mould opening / closing unit and to ejection and injection, for speed a nd moulding performance at the highest levels.
Multipower H is suitable for use in a clean room: thanks to the installation of recirculating ball guides for the slide of the m oving platen, the perfect cleaning and preservation of the m ould area is guaranteed, by the total absence of lubrication o n the tie bars.

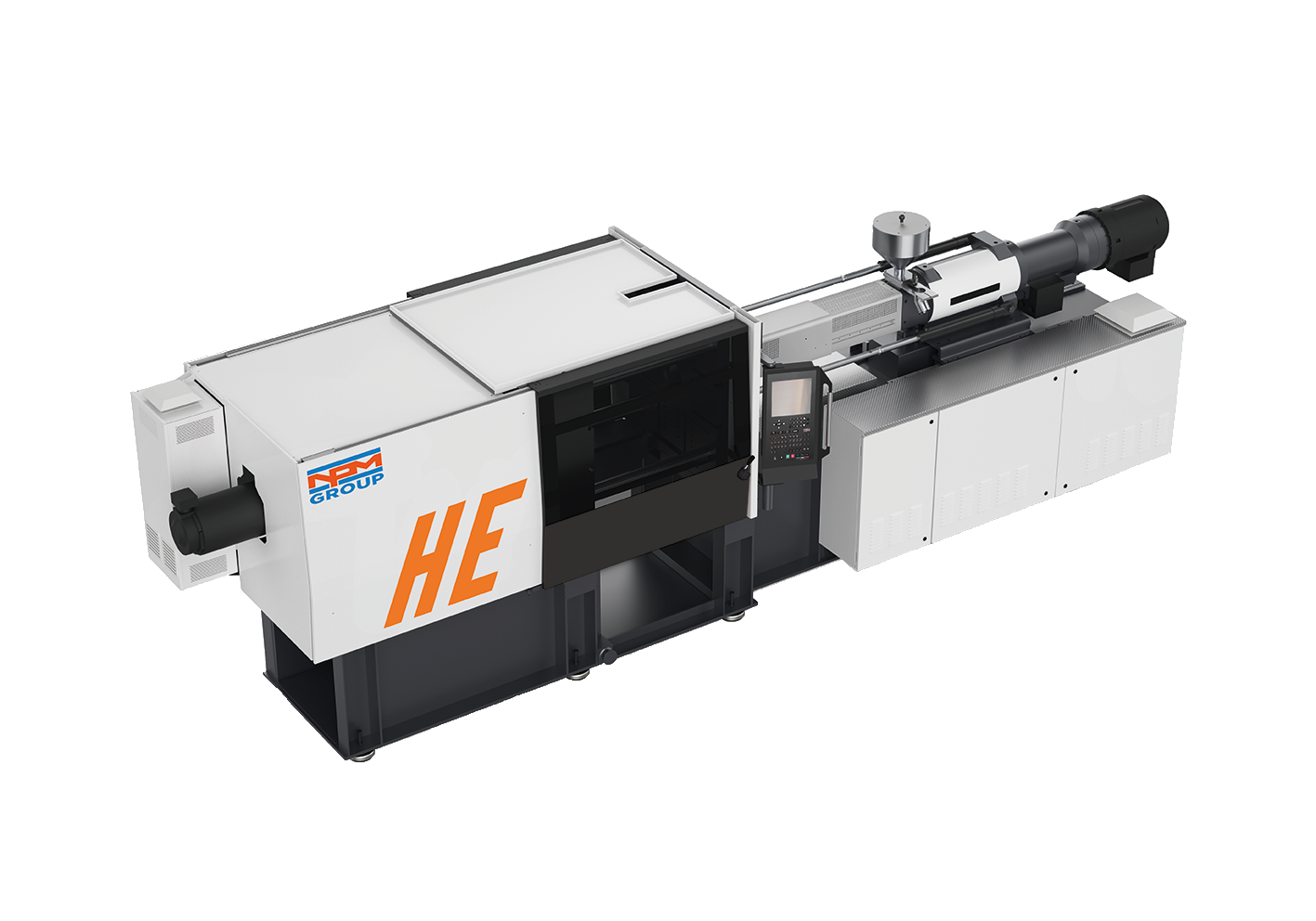

Multipower HE
Multipower HE is a hybrid machine with injection operated by accumulators, for best speed performance. It is suitable for thin-walled products moulding.
For plasticization, screw rotation movement is operated by a directly connected brushless electric motor, without the use of belt or gear reductions. The use of accumulators for precise a nd high-speed injection fully satisfies the most sophisticated m oulding requirements.
The particular concept of these accumulators allows a considerable energy savings: a pump system with dedicated i nverter recharges the accumulators up to the level set by the moulding needs, and then turns off, reducing the energy consumption to the minimum.
The toggle opening/closing system is completely electric and consists of a ball screw, or satellite roller screw, whose r otation is controlled by a specially designed brushless motor with a hollow shaft, mounted directly in the axis. The system, with Moog or Baumüller components, ensures torque and s peed for a precise, fast and perfectly controlled movement in acceleration and braking, and is equipped with an excellent mould-saving type control. The moving platen is supported by recirculating ball guides, guaranteeing mould protection.
The coupling between the electric motor and the ball /satellite rollers screw, optimizes the mechanical operation of the system, in order to ensure the highest efficiency and reliability.
Overlapping movements for the improvement of the cycle time.
Intelligent software, thanks to three integrated options: ECO, NORMAL and FAST . The three functions obtain the greatest p otential from the hydraulic and electrical systems combination, i n order to achieve the best speed performance, and the highest energy savings, whatever the moulding conditions are. Liquid-cooled servomotors ensure energy efficiency and low emissions.

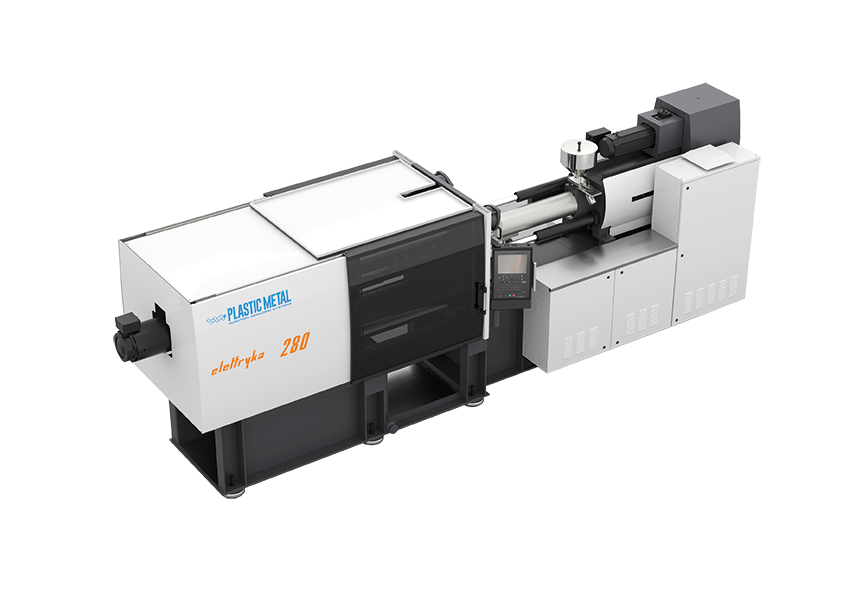

ELETTRYKA
ELETTRYKA is the innovative range of full electric injection moulding machines. All movements are electrically operated, ensuring the best performance, in terms of production efficiency, precision and repeatability.
The design optimization, and careful research, have led t o the reduction of operating and maintenance costs, by improving the use of components and increasing their durability.
The machine features:
• Innovative Moog system without heat development, i ncreasing the performance index by up to 82%
• High efficiency to maximize production with up to 60% energy savings
• High performance thanks to the patented technology, developed for the aerospace industry
• No oil contamination
• No noise pollution
• Injection without ball screw

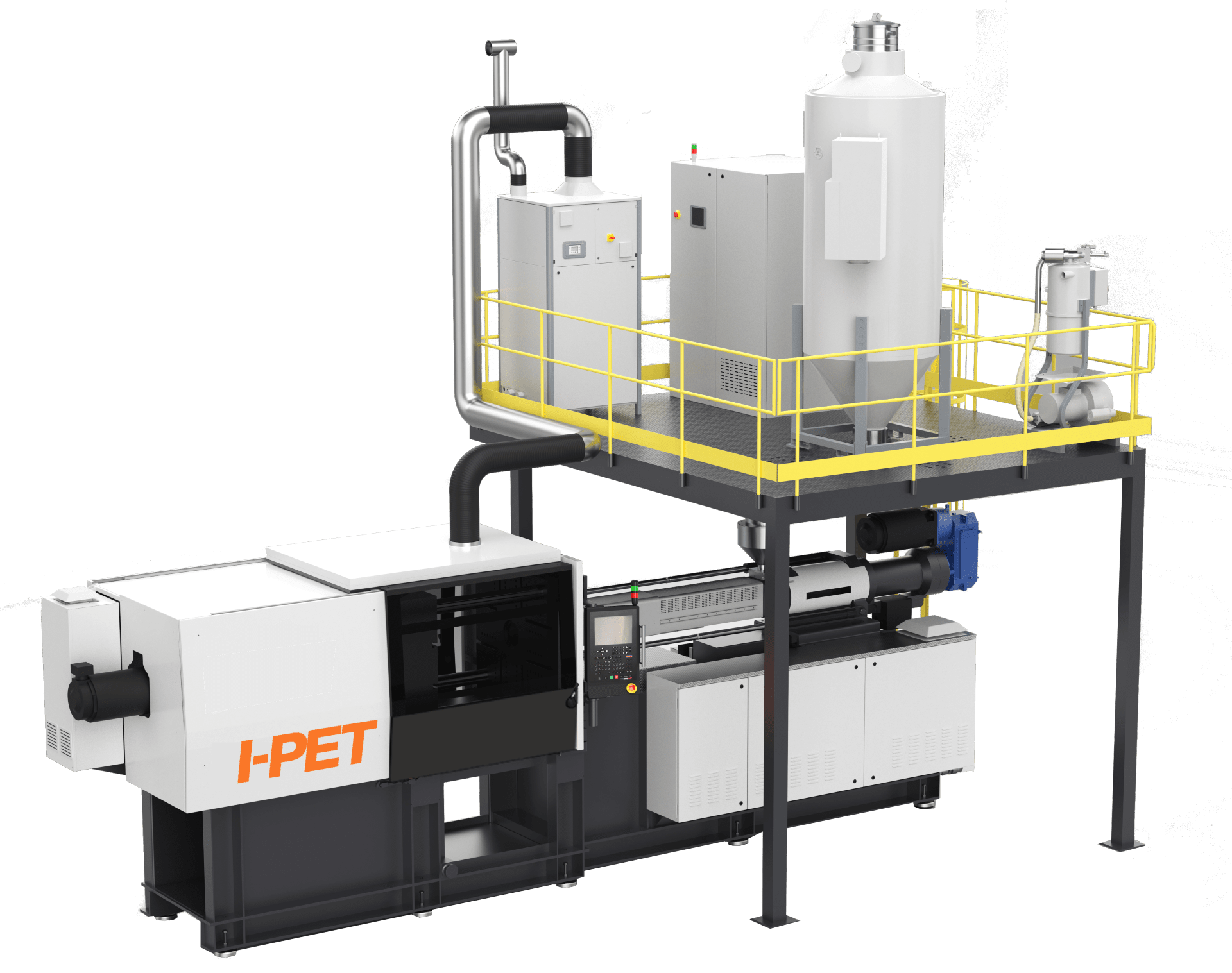

MULTIPOWER I-PET
For small or medium-sized plants, MULTIPOWER I-PET i s the perfect solution, combining high performance and productivity, with low costs and energy savings.
For moulding preforms, the basic plant consists of a MULTIPOWER HE, with a specific injection unit for PET, and a specific ejection system able to provide high force in the first stretch of extraction, and high speed for the remainder of the movement. This configuration is accompanied by a plant for the processing of PET material, and for drying the m ould area. Dedicated connections for the cooling system c omplete the basic equipment.
PET MATERIAL PROCESSING SYSTEM AND MOULD DRYER
• Constant results in terms of heat c ondition and humidity of the processed m aterial, even with different initial c onditions due to raw material storage
• Tolerance to variation in PET powder
• Moulding area constantly dried
LONGITUDINAL CONNECTIONS WITH C OOLING SYSTEM
To ensure easy connection with the mould a nd a clear operating area
SOFT-DROP SYSTEM
• Complete solution handling and storage of preforms
• Two pneumatically operated descending h oppers prevent deformation or s cratching of PET preforms
• Options with one or two fill positions in t he container
