Company
T.M. was born in 2001, when its CEO and founder Tarchini Massimo, after a great experience in electro-mechanic al assembly of Low and Medium Voltage switchgears and systems, for world leader companies electrical, starts in Treviglio (Bergamo), his activity of assembly, wiring and construction of switchgears and plants.
To continue the constant development of the company and in order to enlarge the company potentiality, in 2004, T.M. increases his staff with technicians and Project manager coming from world leader companies and specialized in switchgears and in energy sector.
T.M. is specialized in development, project, construction and installation of switchboards. It gives lots of attentions to quality, reliability and design of products. The intervention on existing switchgears or on its components is part of the activity as well, T.M. take care of finding the better solution to answer customers’ needs in the following sectors:
■ Industry consists of industrial structures, steelworks, cement factory, desalinization and metallurgical systems etc…
■ Power & Energy includes grids, alternative energy, etc…
■ Oil & Gas consists of refinery, extraction and distribution of hydrocarbons etc…
■ Infrastructure includes the tertiary, malls, subways, airports, telecommunications etc.
Operation Unit
T.M. activities takes place in Pagazzano, (near Bergamo, Italy) with a productive area of 12.550 sm, of which 5.100 sm.
Engineering / Project Management
In purpose of giving suitable and innovative answer to the requests of the market, T.M. management and technical staff gives significant resources to the design and development branch. This staff consists of qualified personnel with a large experience in plant design and electromechanical field.
The technical office, further than the progression of single order, is constantly focused on the research of technical and economic solutions to respond to all the customer’s requests.
In addition, the technical office supports the sales office to suggest specific and functional solution for each offer.
A core role is played by the recurrent training. T.M. staff is constantly updated with professional course about project management, productive process control and recent IT support.
T.M. is characterized by the ability of giving "Tayler made" solutions for each customer. The company offers a complete and qualified consultancy service giving also a technical support for any kind of request (the staff support the customer from the starting phases of project study).
About engineering contracts, T.M. has the skills for the following activities:
■ Study, analysis and development of technical specifications and verification of
compliance with in force laws.
■ Development of mechanical drawings related to the switchgears and electric
wiring supplied.
■ Development of wiring diagrams.
■ Analysis of systems of protection and implementation of coordination studies
(selectivity and calibration tables).
■ Writing of manuals necessary for the use and maintenance of the equipment supplied.
Furthermore, T.M. enlarged its research and development department. This Dept. has to develop new products to expand the range following the market demand.
Year of establishment:
2001
Number of employees:
FROM 10 TO 19 EMPLOYEES
Annual turnover:
between 2.5 and 5 million Euro
Reference year of turnover:
2020
Export turnover:
0
Activities:
MANUFACTURING OF ELECTRICAL EQUIPMENT AND EQUIPMENT FOR HOME USE, NON-ELECTRIC
MANUFACTURING OF ELECTRICAL MOTORS, GENERATORS AND TRANSFORMERS AND EQUIPMENT TO DISTRIBUTE AND CONTROL ELECTRICITY
Manufacturing of equipment for the distribution networks and electricity control
MANUFACTURING OF CABLES AND CABLING EQUIPMENT
MANUFACTURING OF LIGHTING EQUIPMENT
MANUFACTURING OF OTHER ELECTRICAL EQUIPMENT
REPAIR, MAINTENANCE AND INSTALLATION OF MACHINERY AND EQUIPMENT
INSTALLATION OF INDUSTRIAL MACHINERY AND EQUIPMENT
Installation of electrical engines, generators and transformers; of equipment for distribution and control of electricity (excluding installation inside buildings)
Installation of electrical and electronic equipment for telecommunications, of radio television transmission equipment, of electrical and electronic equipment systems (excluding installation inside buildings)
Installation of tools and equipment for measuring, control, testing, navigation and similar (including control equipment for industrial processes)
INSTALLATION OF ELECTRICAL AND HYDRAULIC SYSTEMS AND OTHER CONSTRUCTION AND INSTALLATION WORKS
Installation of electrical systems
Installation of electrical systems in buildings and other construction works (including maintenance and repair)
Installation of electronic systems (including maintenance and repair)
- Videos
- Catalogue
T.M. S.R.L. Company Presentation MV and LV Switchgears Engineering & Project Management Container Solutions MV & LV Plants
Containerized Solutions "custom" - TMkiosk
T.M. S.R.L. Company Presentation MV and LV Switchgears Engineering & Project Management Container Solutions MV & LV Plants
TMcon - Containerized Solutions / TMkiosk - Containerized Solutions "custom" / TMsubstation - TM designs and manufactures HV / MV / LV substations in transportable version. /
Busbars - TMbb - To complete our range of electric board in container T.M. realizes air insulated busbar trunking called TMbb. This product is tailored responding to customer necessity and is composed by modular unit on the basis of committer request. TMbb is tested and assembled in factory to simplify the in motion assembly and to reduce the time needed.
Solutions in box for Transformers and RMU - TMbox T.M. realizes TMbox specifically studied for containing transformers and/or RMU compartments.
Low Voltage - Distribution, Control, Protection, etc. - TMbt To complete the production of Low Voltage switchgear, T.M. designed, realized and tested TMbt LV panel expressly studied for offering to the user a variety of uses, from control up to measurement, protection of electric plant. The structure of the switchgear is the same as TMpower and TMmotor so the three products are joinable. TMbt main characteristics: ■ Compactness and minimal dimensions. ■ Two different width ( 600mm and 800mm)
- Contact Information
- Business Proposals
Company:
T.M. S.R.L.
Web site:
Address:
VIA DELLA LIRA ITALIANA SNC
City:
PAGAZZANO (BG)
Zip Code:
24040
E-commerce:
Social media:
Tag:
No business proposals uploaded
- Map

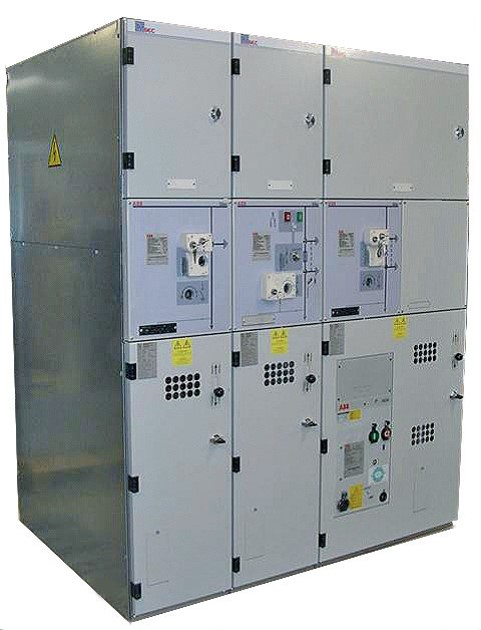

Metal Clad Medium Voltage Primary Switchgear up to 24kV - TMclad.
Medium Voltage Primary - TMclad
T.M. has realized and tested TMclad an Medium Voltage air-insulated switchgear for primary distribution. It’s composed by modular prefabricated unit for interior, combinable with a metallic shell, module/container TMPowerCube, and equipped with extractable circuit breaker in SF6 or vacuum type. Those devices are interchangeable inside the same unit.
They are available in two different versions: TMPC / M and TMPC / E and they are pre-assembled and tested at the factory and allows the creation of frameworks in accordance with IEC 62271-200, IEC 60694, IEC 17-1, CEI 17-6.
■ TMPC / M: complete module including the access compartment for cables which could be arranged for withdrawable VT.
■ TMPC / E: container without the cell-free cables access and so without the possibility of including a withdrawable VT, but thanks to its smaller size is more flexible and is useful for the creation of double-level switchboard. It’s the perfect solution in case of small spaces.
TMclad main characteristics:
■ Vast range of functional unit.
■ Modular and gearing of electric and mechanic interlocks for the maximum security.
■ Simplicity of Installation and maintenance.
Available with:
■ Rated voltage: up to 24KV.
■ Rated current: 630A - 4000A.
■ Rated short-time withstand current of the main circuit: 25kA 3sec. - 40KA 3sec. - 50KA 1sec.
■ Internal Arc up to 31,5kA 1sec.
■ Standard External protection degree: IP30, other IP degrees under request.
In TMPowerCube modules It’s possible to install the following devices:
Vacuum circuit breaker, SF6 circuit breaker, Vacuum Contactors, service and earthing modules: VD4, VM1 and Vmax series, HD4, V-Contact VSC, each operation is performed on the front of the module/container.
Thanks to its characteristics, TMclad range is perfect for every kind of needs guaranteeing service continuity and personnel security.
The use of Medium Voltage Primary Switchgear TMclad, is adequate to the most installation of such as:
■ Industry
■ Power & Energy
■ Oil & Gas
■ Infrastructures
Standard functional unit with integrated auxiliary instrument compartment:
■ Unit type A: Incoming feeder - width 600 - 750 - 1000mm.
■ Unit type AM: Incoming feeder with Measure - width 600 - 750 - 1000mm.
■ Unit type C: Bus tie - width 600 - 750 - 1000mm.
■ Unit type CM: Bus tie with Measure - width 600 - 750 - 1000mm.
■ Unit type R: Riser - width 600 - 750 - 1000mm.
■ Unit type RM : Riser with Measure - width 600 - 750 - 1000mm.
■ Unit type M: Measure - width 600 - 750mm.
■ Unit type PI: Feeder with circuit breaker - width 600 - 750 - 1000mm.
■ Unit type PIM: Feeder with circuit breaker and Measure - width 600 - 750 - 1000mm.
■ Unit type PC: Feeder with contactor - width 600mm.

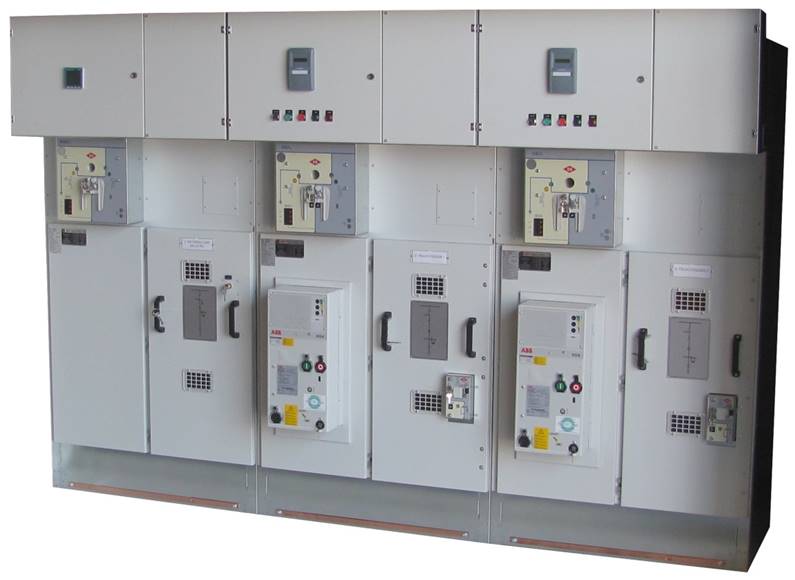

Metal Enclosed Medium Voltage Secondary Switchgear up to 36kV - TMsec36.
Medium Voltage Secondary 36KV - TMsec36
T.M. designed, realized, tested and patented, for the innovative and compact design, TMsec36 an Medium Voltage air-insulated switchboard for secondary distribution at 36KV. It’s composed by a vast rage of functional unit studied and designed for offering to the user a purpose variety and the possibility of being useful for different implant necessity.
TMsec36 switchboard is realized following the philosophy of TMsec. The compartment design of TMsec36 keep in consideration the functionality, the simplicity of movement and the block apparatus and a long period of activity without maintenance.
Each compartment is separated with the same metallic shell which guarantees an IP2X protection degree, so as to allow the access to the machinery compartment even with door opened and live busbar.
TMsec36 main characteristics:
■ Vast range of functional unit.
■ Compactness and optimization of spaces.
■ Modularity and endowment of electric and mechanic interlocks for the maximum security.
■ Simplicity of Installation and maintenance.
Security an simplicity of maneuverability:
The metallic separation between the compartments and the use of insulating and self-extinguishing materials prevent the possibility of fire.
All controls can be performer from the front of the switchgear by using easy and functional systems, mechanical signals about components position and clear operation instructions directly on the switchgear front.
Available with:
■ Rated voltage: 36KV / Rated voltage at frequency endurance (1min): 70KV.
■ Rated current: 630A.
■ Rated short-time withstand current of the main circuit: 16KA 1 sec.
■ Protection degree: IP30.
Long lasting action due to the careful material choice:
TMsec36 switchgear is composed by modular unit with IMS type SD36 and ciurcuit breaker type HD4/R insulated in SF6. Controls are very reliable and could be both manual and motorized. The terminations are the standards for inner use. TMsec36 rage is perfect for any necessity and guarantee the service continuity and staff safety.
The use of Medium Voltage Switchgear for Secondary distribution TMsec36, is adequate to the most installation of such as:
■ Industry
■ Power & Energy
■ Infrastructure
Standard functional unit with integrated auxiliary instrument circuit:
■ Unit type A36: Incoming feeder - width 1100mm.
■ Unit type C36: Bus tie - width 1100mm.
■ Unit type R36: Riser - width 700mm.
■ Unit type M36: Measure - width 700mm.
■ Unit type PI36: Feeder line with circuit breaker - width 1100mm.
■ Unit type P36: Feeder line - width 700mm.

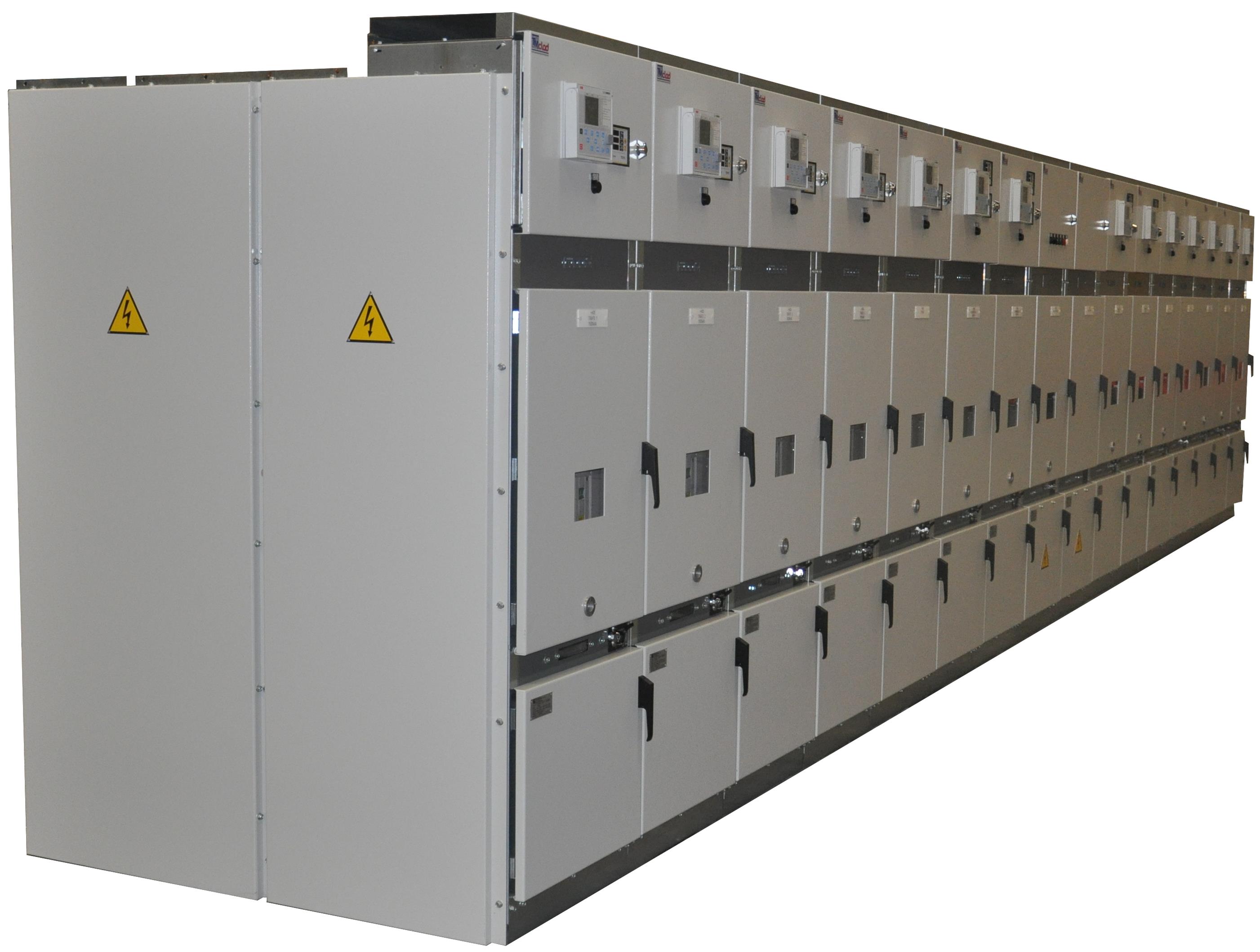

Metal Enclosed Medium Voltage Secondary Switchgear up to 24kV - TMsec.
Medium Voltage Secondary 12 / 17,5 / 24KV - TMsec
T.M. designed, realized, tested and patented, for the innovative and compact design, TMsec an Medium Voltage air-insulated switchboard for secondary Distribution at 24KV. It’s composed by a vast rage of functional unit studied and designed for offering to the user a purpose variety and the possibility of being useful for different implant necessity.The compartment design of TMsec keep in consideration the functionality, the simplicity of the maneuvering devices and the block apparatus and a long period of activity without maintenance.
TMsec dimensions are so to minimize the space needed while maintaining high conditions of safety for the staff according to the existing standards. It is also particularly suitable for secondary distribution and for transformation cabins.
Thanks to its minimal dimensions the switchgear is suitable for different kind of cabins (cabins pre-fabricated compact, mobile and underground). Each apparatus installed in TMsec switchgear (switch-disconnectors, circuit breakers and fuses) is removable for easy maintenance and replacement.
TMsec main characteristics:
■ Vast range of functional unit.
■ Compactness and optimization of spaces.
■ Modular and gearing of electric and mechanic interlocks for the maximum security.
■ Simplicity of Installation and maintenance.
Security an simplicity of maneuverability:
The metallic separation between the compartments and the use of insulating and self-extinguishing materials prevent the possibility of fire.
All controls can be performer from the front of the switchgear by using easy and functional systems, mechanical signals about components position and clear operation instructions directly on the switchgear front.
Available with:
■ Rated voltage: 24KV / Rated voltage at frequency endurance (1min): 50KV.
■ Rated current: 630 - 1250A / current derivation: 630A / Rated short-time current: 16KA.
■ Internal Arc up to 16kA 1sec.
■ Protection degree: IP20 - IP30.
Long lasting action due to the careful material choice:
TMsec switchgear is composed by modular unit with IMS type Gsec and circuit breaker type HD4/R insulated in SF6 or VD4/R vacuum insulated. Controls are very reliable and could be both manual and motorized.
TMsec range is perfect for any necessity and guarantees the service continuity and staff safety.
The use of Medium Voltage Switchgear for Secondary distribution TMsec, is adequate to the most installation of such as:
■ Industry
■ Power & Energy
■ Infrastructure
Standard functional unit with integrated auxiliary instrument circuit:
■ Unit type IF/RL: Incoming feeder right side - width 150 - 375mm.
■ Unit type IF/L: Incoming feeder left side - width 150 - 375mm.
■ Unit type IF: Incoming feeder - width 150 - 375mm.
■ Unit type FL: Feeder line - width 375 - 500mm.
■ Unit type FL/CTVT: Feeder line with CT and VT - width 750mm.
■ Unit type FF: Feeder line with fuses - width 375 - 500mm.
■ Unit type FF/VT: Feeder line with fuses and VT - width 500mm.
■ Unit type FF/VT-C: Feeder line with fuses, VT’s and outgoing cables - width 750mm.
■ Unit type IL/CTVT: Incoming line with CT and VT - width 750mm.
■ Unit type BTR/CTVT: Bus tie Riser with CT’s, VT’s and circuit breaker - width 900mm.

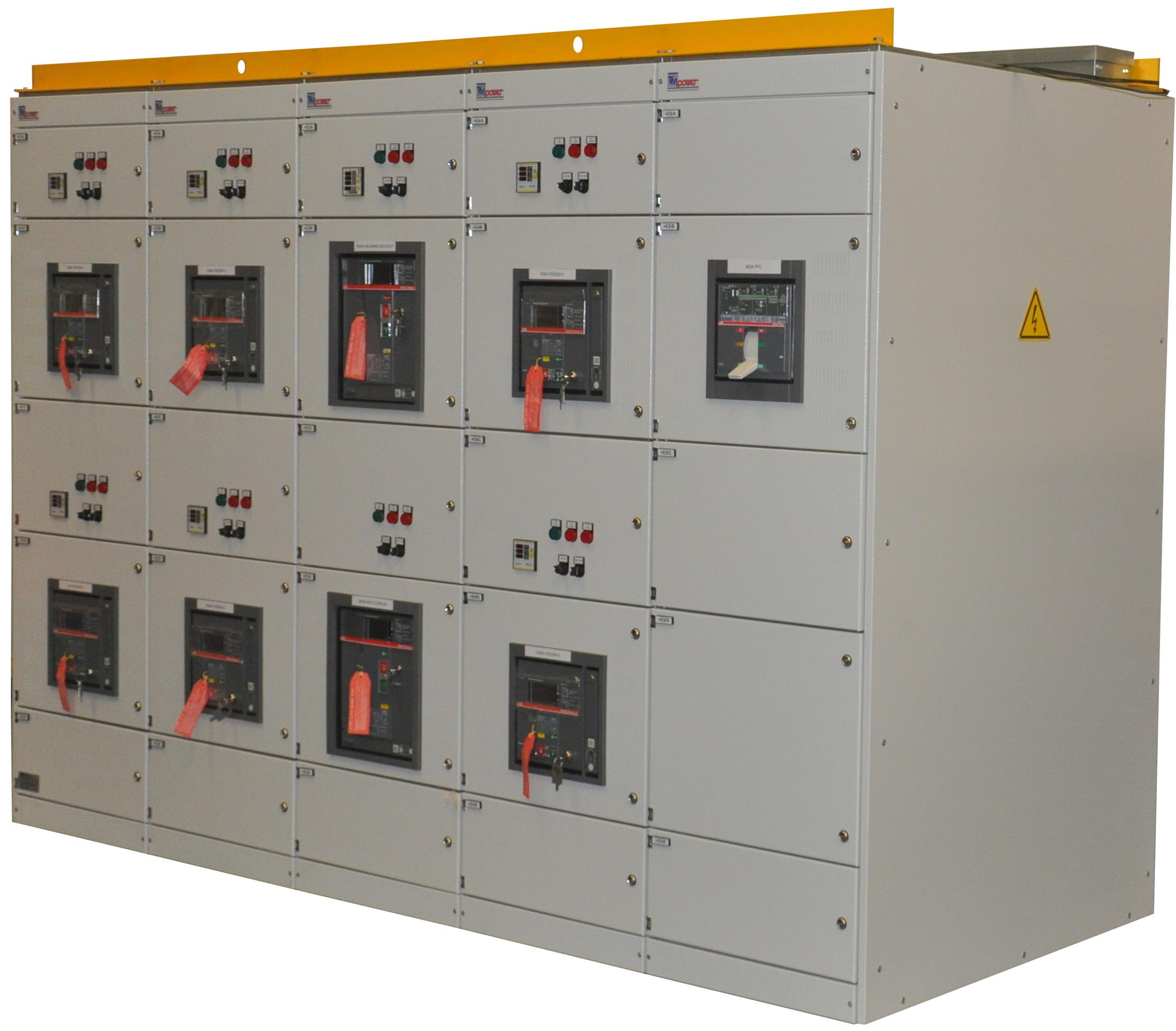

Low Voltage Distribution Switchgear (Power Center) - TMpower.
Low Voltage - Power Center - TMpower
In the field of Low Voltage power distribution, T.M. designed, realized and tested
TMpower. It is studied for offering to the user a variety of purpose and for satisficing several installation requests. TMpower design is focused on the functionality, the simplicity of operation and block disposal and a long activity period.
TMpower is a Power Center with high performance and compact design, equipped with air circuit breaker (ACB) and moulded case ciurcuit breaker (MCCB) both fix and extractable. TMpower can fit different cabins (compact pre-fabricated cabins, mobile and underground).
TMpower main characteristics:
■ Compactness and minimal dimensions.
■ Composed by modular unit (possibility of realizing different combinations, 3phase or 3 phase+Neutral).
■ Safety of operating personnel guaranteed by an adequate earthing system and by mechanic and electric interlocks or separations with the purpose of prevent erroneous operations.
■ Application flexibility in terms of accessibility (it is possible to install TMpower back to back or wall mounting), and connection flexibility (both from the up and the down side using cables).
■ It could be expanded on both sides.
■ Simplicity of installation and maintenance.
Safety an simplicity of operations:
Metallic segregation between elements and the use of insulating and self-extinguishing materials prevent the spreading of potential fire.
The busbar system is designed with vacuum insulation using insulator which are part of the anchoring to the bars. Those insulator are extracted from stratified glass polyester with high characteristics of electromechanical endurance.
All controls can be performer from the front of the switchgear by using easy and functional systems, mechanical signals about components position and clear operation instructions directly on the switchgear front.
Available with:
■ Rated voltage: 1000V.
■ Rated impulse voltage: 8KV.
■ Rated voltage on omnibus busbar: up to 6300A.
■ Rated short-time withstand current: 100kA 1sec. (peak 220kA).
■ Mounting: up to 4B.
■ Protection degree: up to IP54 under request.
Long lasting action due to the careful material choice:
TMpower switchgear is ideal for several solutions and guarantee the service continuity and personnel safety.
The use of Low Voltage Switchgear TMpower, is adequate to the most installation of such as:
■ Industry
■ Power & Energy
■ Oil & Gas
■ Infrastructure

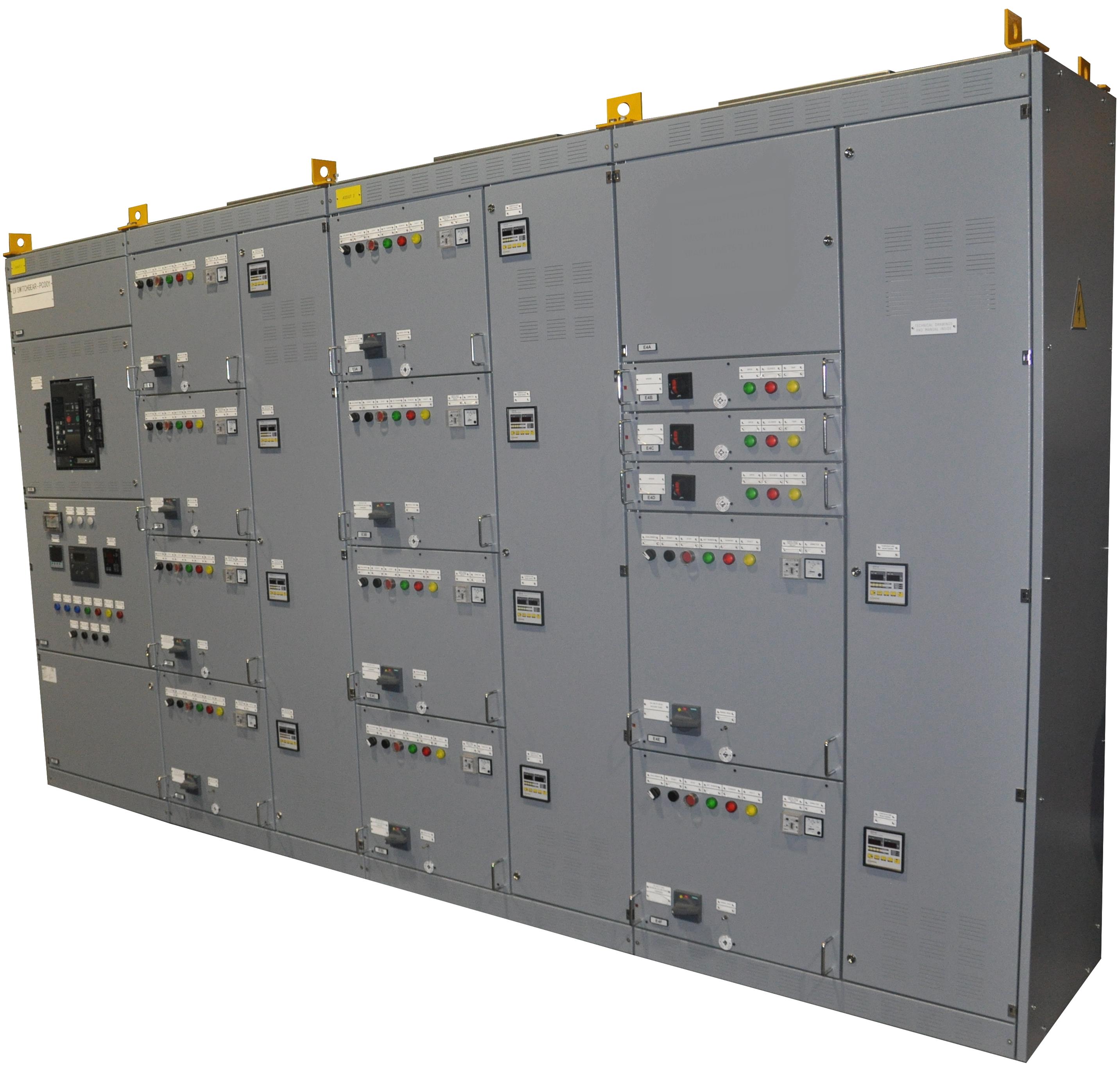

Low Voltage Motor Control Center (MCC with Fixed and/or Withdrawable modules) - TMmotor.
Low Voltage - Motor Control Center - TMmotor
For Low Voltage motors control, protection and command, T.M. designed, realized and tested TMmotor switchgear. A Motor Control Center with two versions: fixed modules (TMmotor-F) and withdrawable modules (TMmotor-W).
The structure of the framework is the same as the TMpower, consequently is guaranteed the accoppiabilità between the products.
The TMmotor design process focuses on the implant aspect, studying different solutions in order to satisfy several installation requests. The switchgear is realized considering the functionality (the size of the lateral cable ducts allows a comfortable access to power and auxiliary connection (width 400mm), the simplicity of operating and block and a long activity period.
TMmotor main characteristics:
■ Compactness and minimal dimensions.
■ Composed by modular unit (up to 32 drawers in a switchgear column, busbar system 3phase or 3 phase+ Neutral), withdrawable modules, possibility of having 4 different positions mechanically diversified: in service, test, sectioned, extract.
■ Safety of operating personnel guaranteed by an adequate grounding system and by mechanic and electric interlocks or separations with the purpose of prevent erroneous operations.
■ Application flexibility in terms of accessibility (it is possible to install TMmotor back to back or on the wall), and connection flexibility.
■ It could be expanded on both sides.
■ Simplicity of installation and maintenance.
Safety an simplicity of operations:
Metallic segregation between elements and the use of insulating and self-extinguishing materials prevent the spreading of potential fire.
The busbar system is designed with vacuum insulation using insulator which are part of the anchoring to the bars. Those insulator are extracted from stratified glass polyester with high characteristics of electromechanical endurance.
All controls can be performer from the front of the switchgear by using easy and functional systems, mechanical signals about components position and clear operation instructions directly on the switchgear front.
Available with:
■ Nominal voltage: 1000V.
■ Rated impulse voltage: 8KV.
■ Rated voltage on omnibus busbar: up to 2500A.
■ Rated short-time withstand current: 64kA 1sec.
■ Constructive forms: up to 4B, able to guarantee apparatus accessibility in safety conditions also with live parts.
■ Protection degree: up to IP54 under request.
Long lasting action due to the careful material choice:
TMmotor switchgear is ideal for several solutions and guarantee the service continuity and personnel safety.
The use of Low Voltage Switchgear TMmotor, is adequate to the most installation of such as:
■ Industry
■ Power & Energy
■ Oil & Gas
■ Infrastructure
